Home /Products/M12 Connector/M12 Connectors Ethernet/IP Angled Male PVC Drag Chain Shielded M12 8 Pin X Code Connector

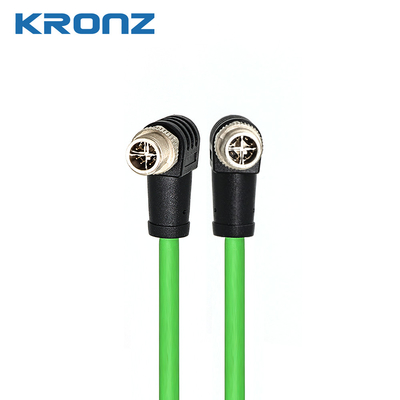

M12 Connectors Ethernet/IP Angled Male PVC Drag Chain Shielded M12 8 Pin X Code Connector

50
MOQ
Negotiable
Price
M12 Connectors Ethernet/IP Angled Male PVC Drag Chain Shielded M12 8 Pin X Code Connector
Features Gallery Product Description Request A Quote
Features
Specifications
Cable: Cate6A 26AWG
Coding: X-Code
Pin: 8
Current: 0.5A
Wire Gauge: 4 X 2 X 0.14
OD: 6.4
Cable Color: Green
Cable Outlet: Angled
Highlight:

M12 8 Pin X Code Connector

,

PVC Drag Chain Shielded M12

,

Ethernet/IP Angled Male M12
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: M1208XMA-2/E60K
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description

M12 Connectors Ethernet/IP Angled Male PVC Drag Chain Shielded M12 8 Pin X Code Connector



Product Description



The M12 Ethernet/IP cable is specifically designed for industrial environments, featuring an X-coded angled cable outlet. It uses a Category 6A wire gauge of 4×2×0.14 (26 AWG), with a yellowish-green PVC outer sheath and drag chain, making it highly durable and wear-resistant. The double-shielded cable provides superior protection and excellent anti-interference capabilities. M12 connectors are widely used in industrial automation, particularly in applications that require high reliability and resistance to vibration.





M12 Connectors Ethernet/IP Angled Male PVC Drag Chain Shielded M12 8 Pin X Code Connector 0M12 Connectors Ethernet/IP Angled Male PVC Drag Chain Shielded M12 8 Pin X Code Connector 1



Technical Data



Standard IEC 61076-2-101
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67



Pin assignment Wire color Coding Rated current Voltage Wire gauge Cable outlet Length Model No.
M12 Connectors Ethernet/IP Angled Male PVC Drag Chain Shielded M12 8 Pin X Code Connector 2

1 = WH/OR
2 = OR
3 = WH/GN
4 = GN
5 = WH/BN
6 = BN
7 = WH/BU
8 = BU

 X 0.5A 30V 4×2×0.14,
(4×2×26AWG)
yellowish green,
PVC,drag chain,
OD=6.4		 Angled 2M M1208XMA-2/E60K



M12 Connectors Ethernet/IP Angled Male PVC Drag Chain Shielded M12 8 Pin X Code Connector 3





Company Profile



M12 Connectors Ethernet/IP Angled Male PVC Drag Chain Shielded M12 8 Pin X Code Connector 4

M12 Connectors Ethernet/IP Angled Male PVC Drag Chain Shielded M12 8 Pin X Code Connector 5M12 Connectors Ethernet/IP Angled Male PVC Drag Chain Shielded M12 8 Pin X Code Connector 6
