Home /Products/M12 Connector/M12 IE Connectors 8 Pin X Code Cat6A 26AWG Female To Male PVC Drag Chain Shielded

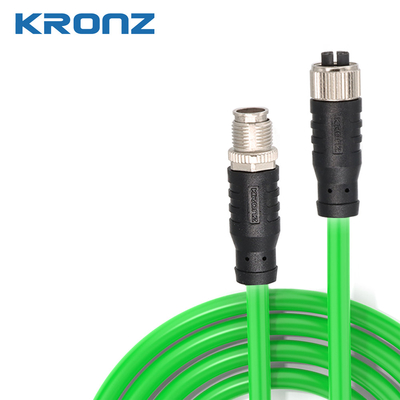

M12 IE Connectors 8 Pin X Code Cat6A 26AWG Female To Male PVC Drag Chain Shielded

50
MOQ
Negotiable
Price
M12 IE Connectors 8 Pin X Code Cat6A 26AWG Female To Male PVC Drag Chain Shielded
Features Gallery Product Description Request A Quote
Features
Specifications
Description: X Code IE Cable Connector M12
Code: X-coding
Contact: Male To Female
Contact Nut Material: Nickle-plated
Gender: Female And Male
Cable Type: Cate6A
Application: Ethernet
Cable Length: 2m...10m
Highlight:

PVC Drag Chain M12 IE Connectors

,

M12 IE Connectors 8 Pin

,

Cat6A M12 IE Connectors
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: M1208XF-2-M1208XM/E60K
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description

M12 IE Connectors 8 Pin X Code Cat6A 26AWG Female to Male PVC Drag Chain Shielded



Product Description



The M1208XF-2-M1208XM/E60K has a female connector at one end and a male connector at the other end, and its length can be customized according to customers' requirements. This network cable is specifically designed for industrial scenarios, and its straight cable outlet adopts X-coding. The internal cable specification is a Category 6A cable with 4×2×0.14 (26 AWG). It is covered with a yellow-green PVC drag chain sheath, possessing extremely high durability and wear resistance. The double-shielded design endows it with excellent protection performance and outstanding anti-interference ability. The M12 connectors are widely used in the field of industrial automation, especially in applications with high requirements for reliability and anti-vibration performance.​





M12 IE Connectors 8 Pin X Code Cat6A 26AWG Female To Male PVC Drag Chain Shielded 0M12 IE Connectors 8 Pin X Code Cat6A 26AWG Female To Male PVC Drag Chain Shielded 1



Technical Data



Standard IEC 61076-2-101
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67



M12 IE Connectors 8 Pin X Code Cat6A 26AWG Female To Male PVC Drag Chain Shielded 2M12 IE Connectors 8 Pin X Code Cat6A 26AWG Female To Male PVC Drag Chain Shielded 3







M12 IE Connectors 8 Pin X Code Cat6A 26AWG Female To Male PVC Drag Chain Shielded 4





Company Profile



M12 IE Connectors 8 Pin X Code Cat6A 26AWG Female To Male PVC Drag Chain Shielded 5

M12 IE Connectors 8 Pin X Code Cat6A 26AWG Female To Male PVC Drag Chain Shielded 6M12 IE Connectors 8 Pin X Code Cat6A 26AWG Female To Male PVC Drag Chain Shielded 7
