M12 Connectors X-coding 8pin Cat6A 4x2 26AWG Female PVC Shielded IE Cable Connectoer

Brand Name:	KRONZ
Model Number:	M1208XM-2/E60K
MOQ:	50
Price:	Negotiable
Packaging Details:	Polybag packing
Payment Terms:	T/T, Western Union,

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

Guangdong, China

Certification:

Document:

Description:

8 Pin Connector M12

Gender:

Male Head

Rated Current:

Wire Gauge:

4 X 2 X 26 AWG

Cable:

Yellowish Green PVC

Application:

Ethernet Environment

Cable Length:

2m Or Customized

Degree Of Protection:

Supply Ability:

100000 pieces per month

Highlight:

M12 Connectors X-coding

M12 Connectors 26AWG

M12 Connectors IE Cable Connectoer

Product Description

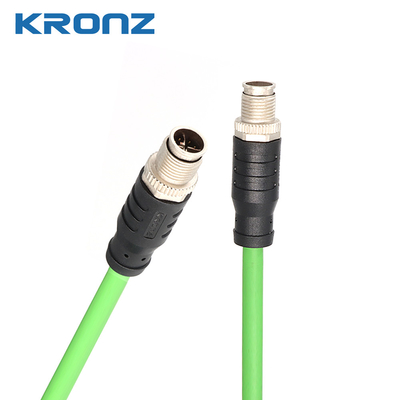

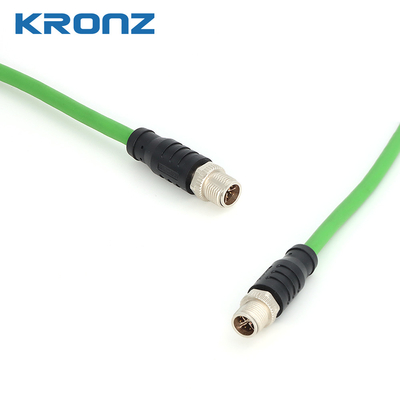

M12 Connectors X-coding 8pin Cat6A 4x2 26AWG Female PVC Shielded IE Cable Connector

Product Attributes

Attribute	Value
Description	8 Pin connector M12
Gender	Male head
Rated current	0.5A
Wire gauge	4 x 2 x 26 AWG
Cable	Yellowish green PVC
Application	Ethernet environment
Cable Length	2m or Customized
Degree of protection	IP67

Product Description

The M1208XM-2/E60K Ethernet cable features a male connector on one end, while the other end is designed for seamless connection to various devices. The cable length can be customized according to customer requirements.

Specifically designed for industrial environments, this cable adopts an X-coded straight design and uses Class 6A internal wiring with a core structure of 4×2×0.14 (26 AWG). Its yellow-green PVC drag chain sheath provides exceptional durability and wear resistance, while the double shielding design enhances the cable's protective capabilities and anti-interference performance.

In smart warehouses, devices such as Automated Guided Vehicles (AGVs), stackers, and sorting robots require real-time communication to carry out tasks like material handling, storage, and sorting. The M12 Ethernet cable can establish a reliable communication link between these devices, enabling the control system to accurately direct the AGV to designated locations for pick-up, the stacker to precisely place goods on the appropriate shelves, and the sorting robot to quickly and accurately sort packages according to instructions. This helps optimize the efficiency of the entire warehouse logistics system.

Technical Data

Standard	IEC 61076-2-101
Contact nut material	Brass, nickle-plated
Contact surface material	Brass, gold-plated
Contact carrier material	PA, black
Housing material	TPU, black
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Pollution degree	3
Ambient temperature	-25~+85℃
Mating cycles	>100
Degree of protection	IP67
