Home /Products/M12 Connectors/RJ45 Connetcor Field Termination Plug Shielded Tolless Cat.6/6a/7 RJ45 Plug

RJ45 Connetcor Field Termination Plug Shielded Tolless Cat.6/6a/7 RJ45 Plug

50
MOQ
Negotiable
Price
RJ45 Connetcor Field Termination Plug Shielded Tolless Cat.6/6a/7 RJ45 Plug
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: RJ45 Plug
Description: Cat.6A Field Plug STP Tolless Type
Body: Zinc-alloy Die-casting With Nickel-plated
Contact Bracket: PC,94V-2
PCB Material: UL 94V-0
Cap: PC UL 94V-2
Mating Cycles: 750 Min.
Insertion Force: 30N Max.
Highlight:

Field Termination RJ45 Plug

,

Shielded RJ45 Plug

,

Cat.6/6a/7 RJ45 Plug
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: RJ45S/W806A
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description
RJ45 Connector Field Termination Plug Shielded Toolless Cat.6/6a/7 RJ45 Plug
Product Specifications
Attribute Value
Product Name RJ45 Plug
Description Cat.6A field plug STP toolless type
Body Zinc-alloy die-casting with nickel-plated
Contact Bracket PC,94V-2
PCB Material UL 94V-0
Cap PC UL 94V-2
Mating Cycles 750 min.
Insertion Force 30N Max.
Product Overview

This series of connector is specially designed for field assembly with solid installation cables. Its innovative design features built-in PCB layout and toolless operation, enabling quick on-site installation in approximately 2 minutes without special tools. Suitable for transmission up to 10 Gigabit Ethernet, this cost-effective solution is popular among installers for installation, repairs, and maintenance applications.

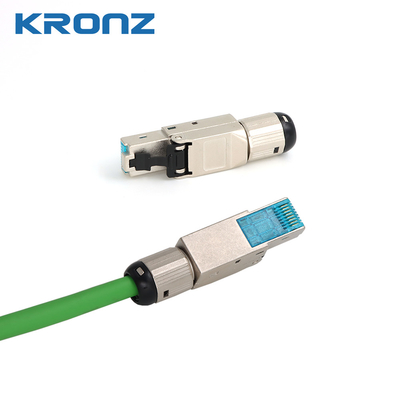

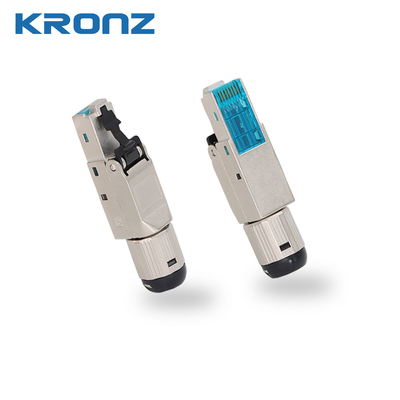

RJ45 Connetcor Field Termination Plug Shielded Tolless Cat.6/6a/7 RJ45 Plug 0 RJ45 Connetcor Field Termination Plug Shielded Tolless Cat.6/6a/7 RJ45 Plug 1 RJ45 Connetcor Field Termination Plug Shielded Tolless Cat.6/6a/7 RJ45 Plug 2
Key Features
  • Available in Cat.6/6A/7 with full shielding
  • Compliant with ANSI/TIA/EIA 568C.2-1, ISO/IEC 11801, EN 50173 standards
  • Supports PoE/PoE+/4PPoE (IEEE 802.3af, 3at, 3b) up to 100 watts
  • Built-in PCB for excellent performance and low attenuation
  • Color-coded IDC strips according to EIA/TIA 568 A & B standards
  • 360° shield coverage with screwable metal boot for secure cable fixation
  • Compatible with 23-24 AWG stranded and solid network cables (copper wires, round type)
  • Toolless design eliminates need for crimping tools
  • Reusable design ideal for DIY LAN cable connections
  • Functionality verified by TIA standard reliability testing
  • FLUKE Channel Link tested and verified
Technical Specifications
Body Zinc-alloy die-casting with Nickel-plated
Contact Bracket PC,UL94V-2
PCB Material FR-4, UL 94V-0
Contact Material Phosphor bronze with Nickel-plated
Contact Finishing 15u gold-plated on contact surface
IDC Terminal Phosphor bronze with Tin-plated
Cap PC,UL94V-2, with 568A&B labeling sticker
Operating Temperature -10°C to +60°C (ISO/IEC 11801, ANSI/TIA 568C.2)
Storage Temperature -40°C to +60°C
Mating Cycles (with RJ45 jack) 750 min. (ISO/IEC 11801, IEC 60603-7-5)
Insertion Force 30N Max. (IEC 60603-7-5)
Retention strength 7.7 kg between jack and plug
Clamp >200 acc. to ISO/IEC 11801, IEC 60603-7-5
