M12 Connector 2 3 4 5 6 7 8 12 Pin A B D Code Screw Locking Plug Male Angled

M12 Connector 2 3 4 5 6 7 8 12 Pin A B D Code Screw Locking Plug Male Angled

Brand Name:	KRONZ
Model Number:	F1203MA-PF/M12C
MOQ:	50 pieces
Price:	Negotiable
Packaging Details:	Polybag packing
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE

Document:

Product Brochure PDF

Description:

M12 Angled Connector

Type:

PCB

Rated Power:

4A/250V

Pin:

2/3/4/5/6/7/8/12

Code:

A/B/D

Rated Impulse Voltage:

2500V

Contact Resistance:

≤ 5

Supply Ability:

100000 pieces per month

Highlight:

Angled M12 Connector

,

2 Pin M12 Connector

,

Screw Locking M12 Connector

Product Description

M12 Connector 2 3 4 5 6 7 8 12 Pin A B D Code Screw Locking Plug Male Angled

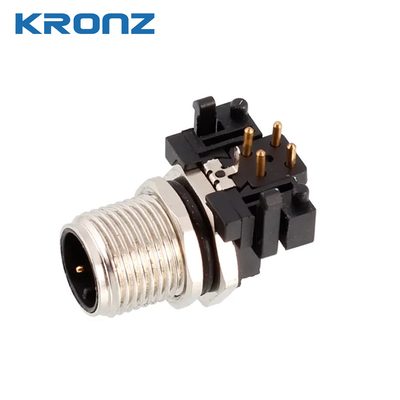

M12 Connector 2 3 4 5 6 7 8 12 Pin A B D Code Screw Locking Plug Male Angled 0

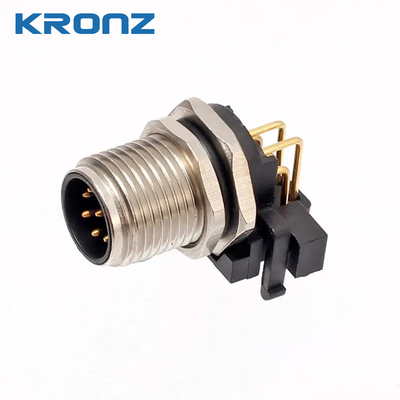

M12 Connector 2 3 4 5 6 7 8 12 Pin A B D Code Screw Locking Plug Male Angled 1

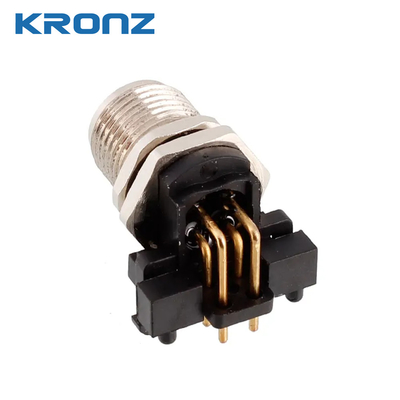

M12 Connector 2 3 4 5 6 7 8 12 Pin A B D Code Screw Locking Plug Male Angled 2

Product Specifications

Attribute	Value
Description	M12 Angled Connector
Type	PCB
Rated Power	4A/250V
Pin	2/3/4/5/6/7/8/12
Code	A/B/D
Rated Impulse Voltage	2500V
Contact Resistance	≤ 5

Technical Data

Standard	IEC 61076-2-101
Contact nut material	Brass, nickel-plated
Contact surface material	Brass, gold-plated
Contact carrier material	PA, black
Housing material	PBT/PA, black
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Pollution degree	3
Ambient temperature	-40~+80℃
Mating cycles	≥500
Degree of protection	IP67

M12 Connector 2 3 4 5 6 7 8 12 Pin A B D Code Screw Locking Plug Male Angled 3

M12 Connector 2 3 4 5 6 7 8 12 Pin A B D Code Screw Locking Plug Male Angled 4

About Our Company

M12 Connector 2 3 4 5 6 7 8 12 Pin A B D Code Screw Locking Plug Male Angled 5

M12 Connector 2 3 4 5 6 7 8 12 Pin A B D Code Screw Locking Plug Male Angled 6

M12 Connector 2 3 4 5 6 7 8 12 Pin A B D Code Screw Locking Plug Male Angled 7

M12 Connector 2 3 4 5 6 7 8 12 Pin A B D Code Screw Locking Plug Male Angled 8
