M12 Angled Female Back Mount Socket PCB Type Panel Mount 3/4/5/6/7/8/12 Pin Connectors

M12 Angled Female Back Mount Socket PCB Type Panel Mount 3/4/5/6/7/8/12 Pin Connectors

Brand Name:	KRONZ
Model Number:	F1203FA-PF/M12C
MOQ:	50 pieces
Price:	Negotiable
Packaging Details:	Polybag packing
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE

Document:

Product Brochure PDF

Description:

M12 Connector 90 Degree

Type:

PCB

Contact Method:

Threaded Connection

Pin:

2/3/4/5/6/7

Code:

A B D

Temperature:

-40~+80℃

Life Cycle:

≥ 500

Supply Ability:

100000 pieces per month

Highlight:

12 Pin M12 Connector

,

PCB Type Panel Mount M12 Connector

,

Female Back Mount M12 Connector

Product Description

M12 Angled Female Back Mount Socket PCB Type Panel Mount Connectors

Product Overview

High-quality M12 Connector with 90-degree angled design, ideal for industrial PCB panel mounting applications.

Key Specifications

Attribute	Value
Description	M12 Connector 90 Degree
Type	PCB
Contact method	Threaded connection
Pin configurations	2/3/4/5/6/7
Code	A B D
Temperature range	-40~+80℃
Life cycle	≥ 500 mating cycles

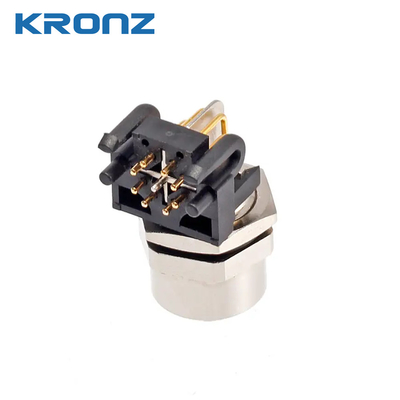

M12 Angled Female Back Mount Socket PCB Type Panel Mount 3/4/5/6/7/8/12 Pin Connectors 0

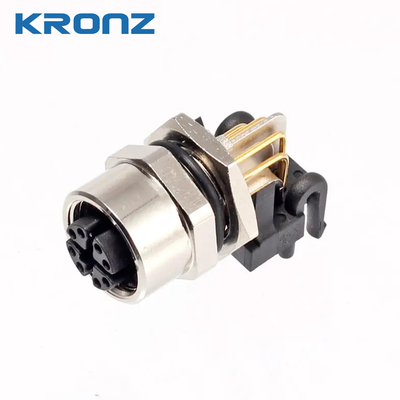

M12 Angled Female Back Mount Socket PCB Type Panel Mount 3/4/5/6/7/8/12 Pin Connectors 1

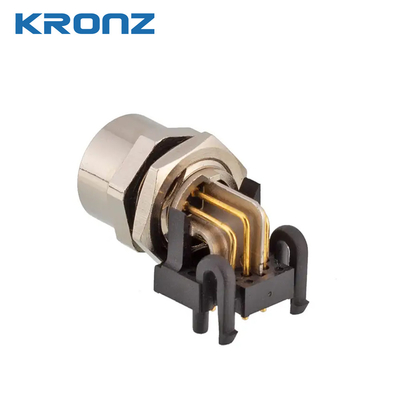

M12 Angled Female Back Mount Socket PCB Type Panel Mount 3/4/5/6/7/8/12 Pin Connectors 2

Technical Specifications

Parameter	Specification
Standard	IEC 61076-2-101
Contact nut material	Brass, nickel-plated
Contact surface material	Brass, gold-plated
Contact carrier material	PA, black
Housing material	PBT/PA, black
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Pollution degree	3
Ambient temperature	-40~+80℃
Mating cycles	≥500
Degree of protection	IP67

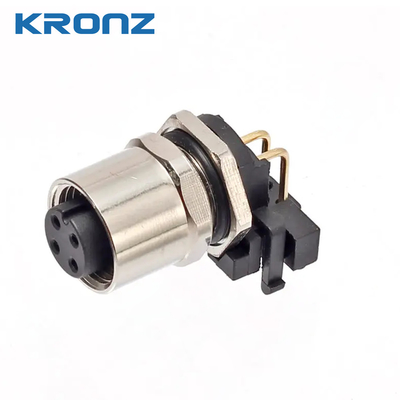

M12 Angled Female Back Mount Socket PCB Type Panel Mount 3/4/5/6/7/8/12 Pin Connectors 3

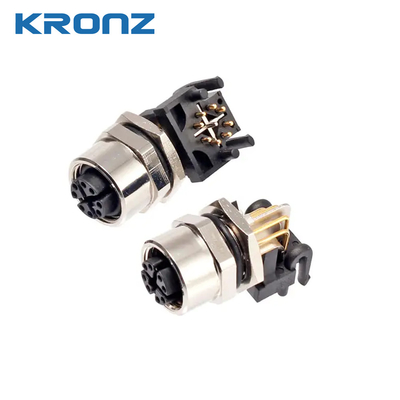

M12 Angled Female Back Mount Socket PCB Type Panel Mount 3/4/5/6/7/8/12 Pin Connectors 4

Manufacturer Information

M12 Angled Female Back Mount Socket PCB Type Panel Mount 3/4/5/6/7/8/12 Pin Connectors 5

M12 Angled Female Back Mount Socket PCB Type Panel Mount 3/4/5/6/7/8/12 Pin Connectors 6

M12 Angled Female Back Mount Socket PCB Type Panel Mount 3/4/5/6/7/8/12 Pin Connectors 7

M12 Angled Female Back Mount Socket PCB Type Panel Mount 3/4/5/6/7/8/12 Pin Connectors 8
