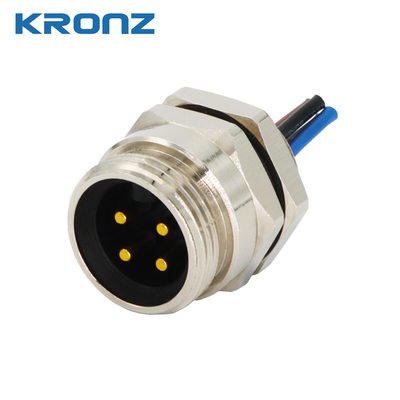

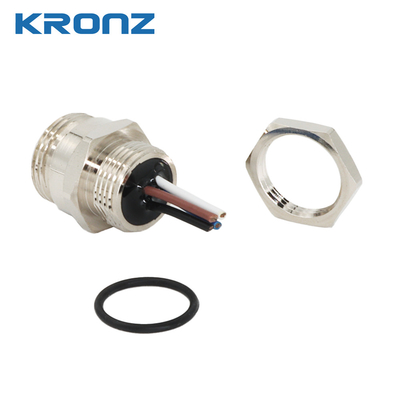

7/8'' Connector Front Mounting100 Mating Circular Connectors For Heavy-Duty

Brand Name:	KRONZ
Model Number:	F7804M-0.5R/13.5
MOQ:	5
Price:	Negotiable
Packaging Details:	Polybag packing
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

Document:

Product Brochure PDF

Material:

Brass

Cable Outlet:

Straight

Ambient Temperature:

-25~+85℃

Contact Resistance:

≤5mΩ

Description:

7/8

Contact Carrier Material:

PA, Black

Shielded:

Seal Material:

FPM/FKM

Supply Ability:

100000 pieces per month

Highlight:

Heavy Duty 7/8''Connector

100 Mating 7/8'' Connector

Front Mounting 7/8'' Connector

Product Description

7/8" Connector Front Mounting 100 Mating Circular Connectors For Heavy-Duty

Product Specifications

Attribute	Value
Material	Brass
Cable Outlet	Straight
Ambient temperature	-25~+85℃
Contact resistance	≤5mΩ
Description	7/8"
Contact Carrier Material	PA, Black
Shielded	No
Seal Material	FPM/FKM

Product Overview

The 7/8" Connector is a versatile and reliable product designed for heavy machinery and wind energy applications. With its thread specification of 7/8"-16UN, this connector ensures a secure and stable connection in demanding environments.

Designed with coding A, this connector offers a standardized coding system for easy identification and compatibility. The brass, nickel-plated contact nut material ensures excellent conductivity and durability for long-term use in challenging conditions.

Key Features

Product Name: 7/8" Connector
Insulation resistance: ≥100MΩ
Application: Industrial Automation
Material: Brass
Maximum Pressure: 150 PSI
Mating cycles: >100

Technical Parameters

Voltage	300V
Description	7/8"
Contact Nut Material	Brass, Nickel-plated
Degree Of Protection	IP67
Coding	A
Application	Industrial Automation
Seal Material	FPM/FKM
Maximum Pressure	150 PSI
Connection Type	Male
Contact Resistance	≤5mΩ

Applications

The 7/8" Connector is ideal for solar energy systems, industrial machinery, and other applications requiring vibration-resistant, durable connections. Its brass housing with nickel-plated finish provides excellent corrosion resistance for both indoor and outdoor use.

With an operating temperature range of -25 to +85℃ and IP67 protection, this connector performs reliably in harsh environments. The CE certification ensures compliance with international quality standards.

Support and Services

Expert guidance on installation and usage
Troubleshooting assistance for any issues
Warranty support and product replacement services
Regular updates and maintenance tips
