7/8" Connector With 4×0.15 (4×16AWG) Wire Gauge And IP67 Waterproof Circular Connectors

Brand Name: KRONZ
Model Number: M7804F-2/P00K
MOQ: 5
Price: Negotiable
Packaging Details: Polybag packing
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Contact Resistance:
≤5mΩ
Application:
Industrial Automation
Mating Cycles:
>100
Ambient Temperature:
-25~+85℃
Seal Material:
FPM/FKM
Pollution Degree:
3
Wire Color:
1=BK 2=BU 3=BN 4=WH
Voltage:
600V
Supply Ability:
100000 pieces per month
Highlight:

16AWG Circular Connectors

,

4×0.15 Circular Connectors

,

IP67 Waterproof Circular Connectors

Product Description
7/8" Connector With 4×0.15 (4×16AWG) Wire Gauge And IP67 Waterproof Circular Connectors
Product Specifications
Attribute Value
Contact resistance ≤5mΩ
Application Industrial Automation
Mating cycles >100
Ambient temperature -25~+85℃
Seal Material FPM/FKM
Pollution degree 3
Wire color 1=BK 2=BU 3=BN 4=WH
Voltage 600V
Product Overview
The 7/8" Connector is a reliable and efficient Industrial Automation Connector designed for demanding industrial applications. With IP67 waterproof rating, this Circular Connector provides superior protection against dust and water ingress, making it ideal for harsh environments.
Key Features
  • Product Name: 7/8" Connector
  • Wire Gauge: 4×0.15 (4×16AWG)
  • Contact Carrier Material: PA, Black
  • Pin Configuration: 4 Pin
  • Connector Type: Straight
  • IP67 waterproof rating for harsh environments
  • Low contact resistance (≤5mΩ) for optimal conductivity
  • Durable construction with >100 mating cycles

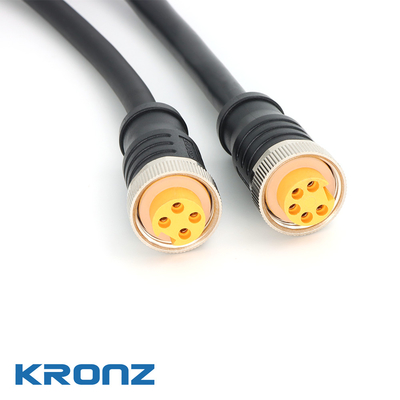

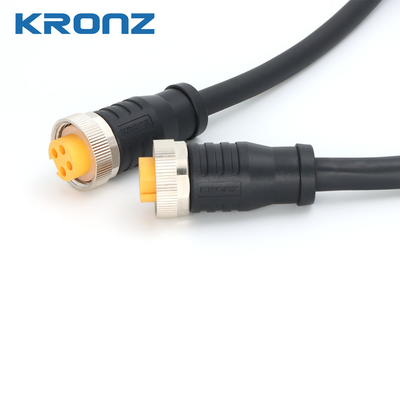

7/8" Connector With 4×0.15 (4×16AWG) Wire Gauge And IP67 Waterproof Circular Connectors 0 7/8" Connector With 4×0.15 (4×16AWG) Wire Gauge And IP67 Waterproof Circular Connectors 1
Technical Parameters
Thread Type 7/8" - 16UN
Contact Nut Material Brass, Nickle-plated
Wire color 1=BK 2=BU 3=BN 4=WH
Coding A
Application Industrial Automation
Cable Length 2/5/10meter Or Customized
Contact Carrier Material PA, Black
Mating cycles >100
Cable Outlet Straight
Rated Current 8A
Applications
The 7/8" Industrial Connector is designed for demanding industrial applications including:
  • Factory automation systems
  • Industrial machinery and equipment
  • Robotics applications
  • Outdoor installations requiring weather resistance
  • Systems requiring flexible cable length options
Support and Services
  • Technical troubleshooting assistance
  • Installation guidance
  • Product training sessions
  • Warranty support

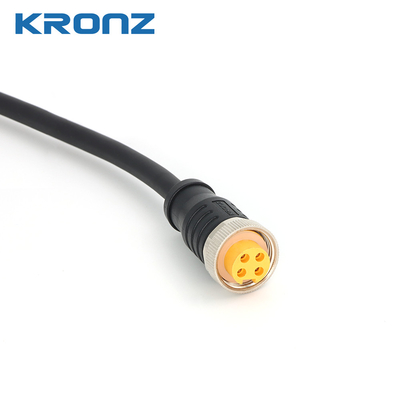

7/8" Connector With 4×0.15 (4×16AWG) Wire Gauge And IP67 Waterproof Circular Connectors 2 7/8" Connector With 4×0.15 (4×16AWG) Wire Gauge And IP67 Waterproof Circular Connectors 3 7/8" Connector With 4×0.15 (4×16AWG) Wire Gauge And IP67 Waterproof Circular Connectors 4
Packing and Shipping
Product Name: 7/8" Connector
Package Includes: 1 x 7/8" Connector
Shipping: Carefully packaged and processed within 1-2 business days
7/8" Connector With 4×0.15 (4×16AWG) Wire Gauge And IP67 Waterproof Circular Connectors 5 7/8" Connector With 4×0.15 (4×16AWG) Wire Gauge And IP67 Waterproof Circular Connectors 6
