Home /Products/7/8'' Connectors/7/8" Circular Connector with Straight PVC Cable Outlet and Black Housing Material

7/8" Circular Connector with Straight PVC Cable Outlet and Black Housing Material

5
MOQ
Negotiable
Price
7/8" Circular Connector with Straight PVC Cable Outlet and Black Housing Material
Features Gallery Product Description Request A Quote
Features
Specifications
Description: 7/8" Cable Connector
Cable Material: PVC, Black
Seal Material: FPM/FKM
Rated Current: 8A
Cable Outlet: Straight
Voltage: 600V
Wire Color: 1=BK 2=BU 3=GN/YE 4=BN 5=WH
Degree Of Protection: IP67
Highlight:

Black Housing Material Circular Connector

,

PVC Cable Outlet Circular Connector

,

7/8'' Circular Connector
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: M7805M-2/P00K
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description
7/8" Circular Connector with Straight PVC Cable Outlet and Black Housing Material
Product Specifications
Attribute Value
Description 7/8" Cable Connector
Cable Material PVC, Black
Seal Material FPM/FKM
Rated Current 8A
Cable Outlet Straight
Voltage 600V
Wire color 1=BK 2=BU 3=GN/YE 4=BN 5=WH
Degree Of Protection IP67
Product Overview
The 7/8" Connector is a versatile and reliable sensor connector designed for industrial automation applications. With its sturdy construction and high performance, this metal shell industrial connector is ideal for various industrial settings.
Key Features
  • Thread Type: 7/8" - 16UN
  • Contact resistance: ≤5mΩ
  • Ambient temperature range: -25~+85℃
  • Non-shielded design
  • 5-pin configuration

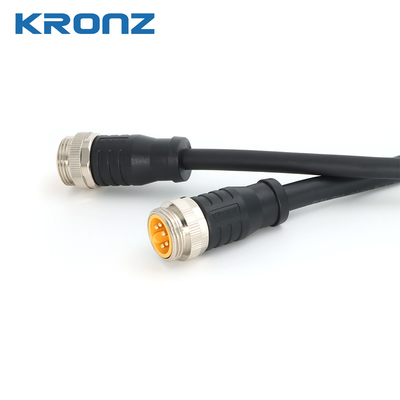

7/8" Circular Connector with Straight PVC Cable Outlet and Black Housing Material 0 7/8" Circular Connector with Straight PVC Cable Outlet and Black Housing Material 1
Technical Parameters
Parameter Value
Thread Type 7/8" - 16UN
Application Industrial Automation
Contact Carrier Material PA, Black
Contact Surface Material Brass, Gold-plated
Insulation Resistance ≥100MΩ
Mating Cycles >100
Applications
This vibration-resistant connector is ideal for industrial automation settings where stability and durability are paramount. Available in 3, 4, or 5 pin configurations, it offers versatility for various installation requirements.

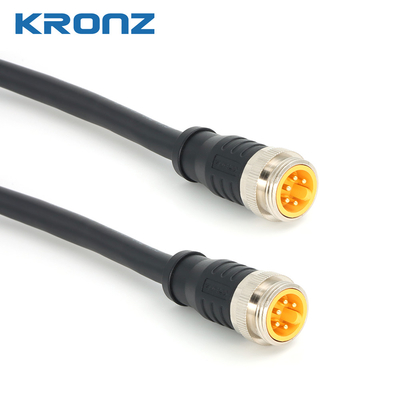

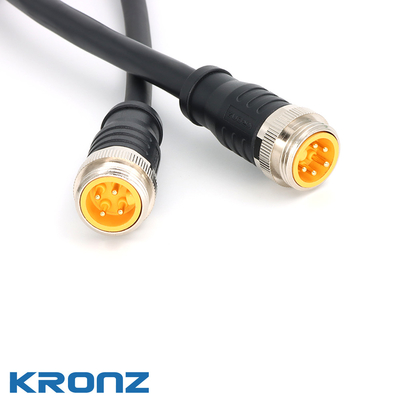

7/8" Circular Connector with Straight PVC Cable Outlet and Black Housing Material 2 7/8" Circular Connector with Straight PVC Cable Outlet and Black Housing Material 3
Support and Services
Our technical support team is available to assist with installation, troubleshooting, or product specifications. We also offer product training, maintenance programs, and on-site support to optimize performance and longevity.
7/8" Circular Connector with Straight PVC Cable Outlet and Black Housing Material 4
Packaging and Shipping
Each 7/8" Connector is carefully packaged in polybags to ensure safe delivery. Shipping time varies by location.
7/8" Circular Connector with Straight PVC Cable Outlet and Black Housing Material 5 7/8" Circular Connector with Straight PVC Cable Outlet and Black Housing Material 6
Tag:

7/8" Circular Connector

Wireable Field Assembly Connector

Waterproof 7/8" Connector
