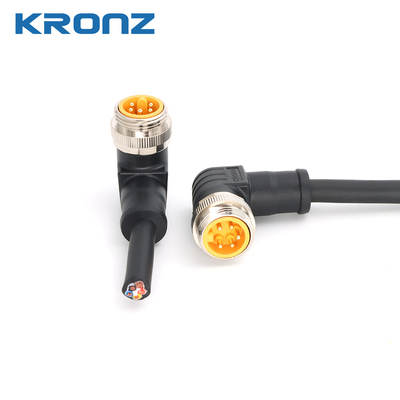

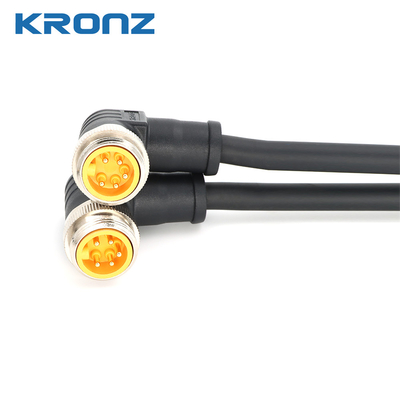

7/8"-16UN Connectors with Pollution Degree 3 Power Connector for Industrial Automation

Brand Name:	KRONZ
Model Number:	M7805MA-5/P00K
MOQ:	5
Price:	Negotiable
Packaging Details:	Polybag packing
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

Document:

Product Brochure PDF

Contact Nut Material:

Brass, Nickle-plated

Application:

Industrial Automation

Rated Current:

Usage:

For Power Applications

Description:

7/8

Thread Type:

7/8"-16UN

Pin:

5 Pin

Wire Color:

1=BK 2=BU 3=GN/YE 4=BN 5=WH

Supply Ability:

100000 pieces per month

Highlight:

Industrial Automation Power Connector

Pollution Degree 3 Power Connector

7/8'' -16UN Power Connector

Product Description

7/8"-16UN Connectors with Pollution Degree 3 Power Connector for Industrial Automation

Product Specifications

Attribute	Value
Contact Nut Material	Brass, Nickle-plated
Application	Industrial Automation
Rated Current	8A
Usage	For Power Applications
Thread Type	7/8"-16UN
Pin	5 Pin
Wire color	1=BK 2=BU 3=GN/YE 4=BN 5=WH

Product Overview

The 7/8" Industrial Connector is a versatile and reliable solution designed for industrial applications requiring secure, quick connections. Featuring a 5-pin design, this connector offers easy installation and efficient performance in demanding environments.

Key Features

Rated current: 8A for moderate power loads
Customizable cable lengths: 2, 5, or 10 meters available
Durable TPU housing in black finish
Brass contact surface with gold-plated finish
FPM/FKM seal material for environmental protection
Pollution Degree 3 rated
Mating cycles: >100

Technical Parameters

Wire color	1=BK 2=BU 3=GN/YE 4=BN 5=WH
Housing Material	TPU, Black
Contact Nut Material	Brass, Nickle-plated
Seal Material	FPM/FKM
Cable Length	2/5/10 meter or customized
Cable Material	PVC, Black
Contact resistance	≤5mΩ

Industrial Applications

The 7/8" Connector is engineered for reliable performance in demanding industrial environments:

Industrial Automation: Ensures stable connections in high-vibration environments
Machinery and Equipment: Robust construction for factory installations
Manufacturing Processes: CE certified for compliance with industry standards
Industrial Networking: Gold-plated contacts for reliable signal transmission
Harsh Environments: Weather-resistant design for outdoor installations
