Industrial M12 Connector With Angle Cable Outlet Coding A Insulation Resistance ≥100MΩ

Brand Name:	KRONZ
Model Number:	H1205MA-9/L
MOQ:	5
Price:	Negotiable
Packaging Details:	Polybag packing
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

Document:

Product Brochure PDF

Coding:

Seal Material:

FPM/FKM

Contact Carrier Material:

PA, Black

Insulation Resistance:

≥100MΩ

Contact Resistance:

≤5mΩ

Degree Of Protection:

IP67

Mating Cycles:

>100

Ambient Temperature:

-25~+85℃

Supply Ability:

100000 pieces per month

Highlight:

Angle Cable Outlet M12 Connector

Coding A M12 Connector

Industrial M12 Connector

Product Description

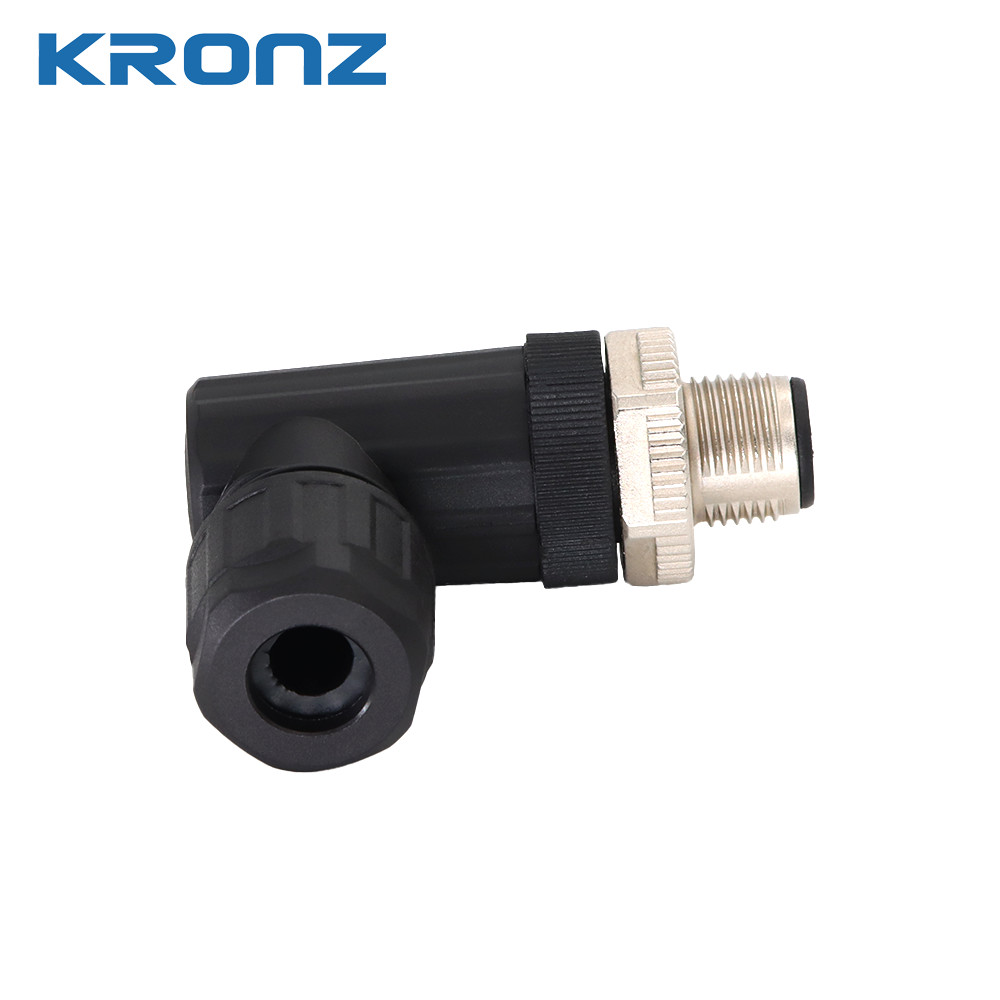

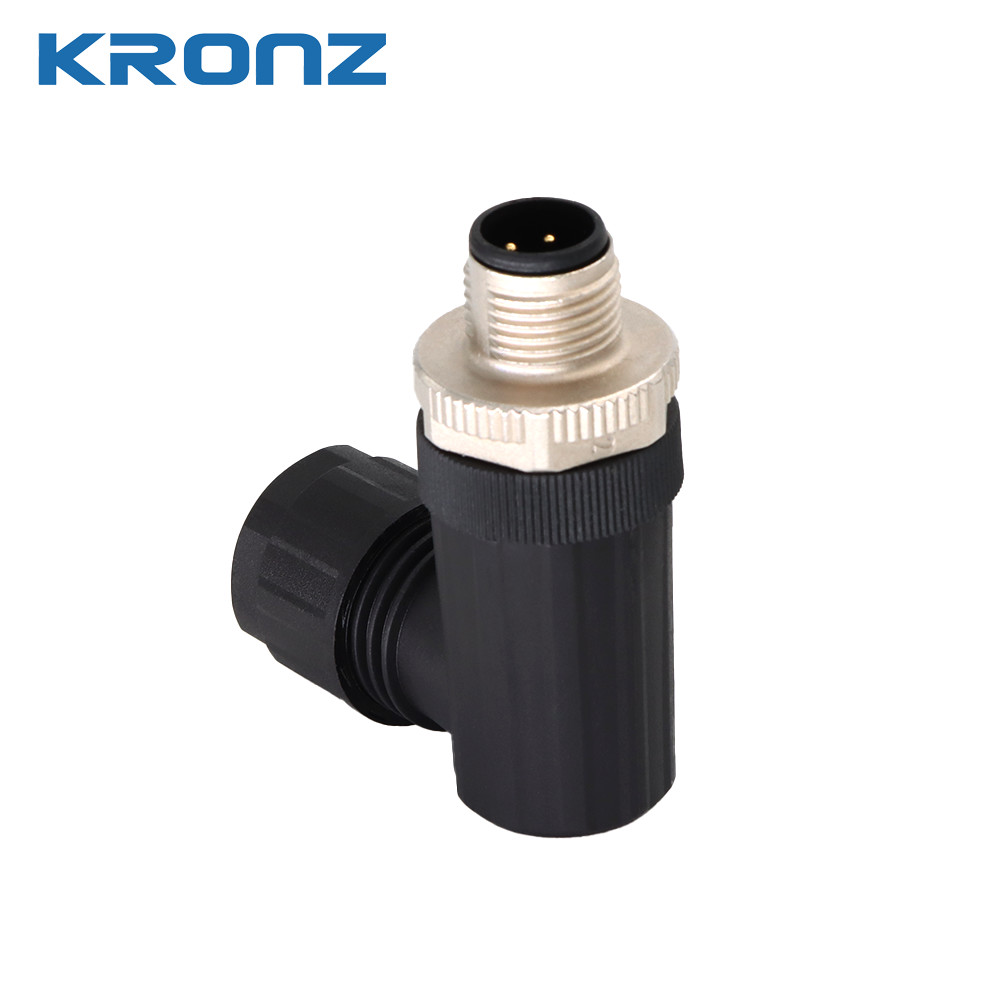

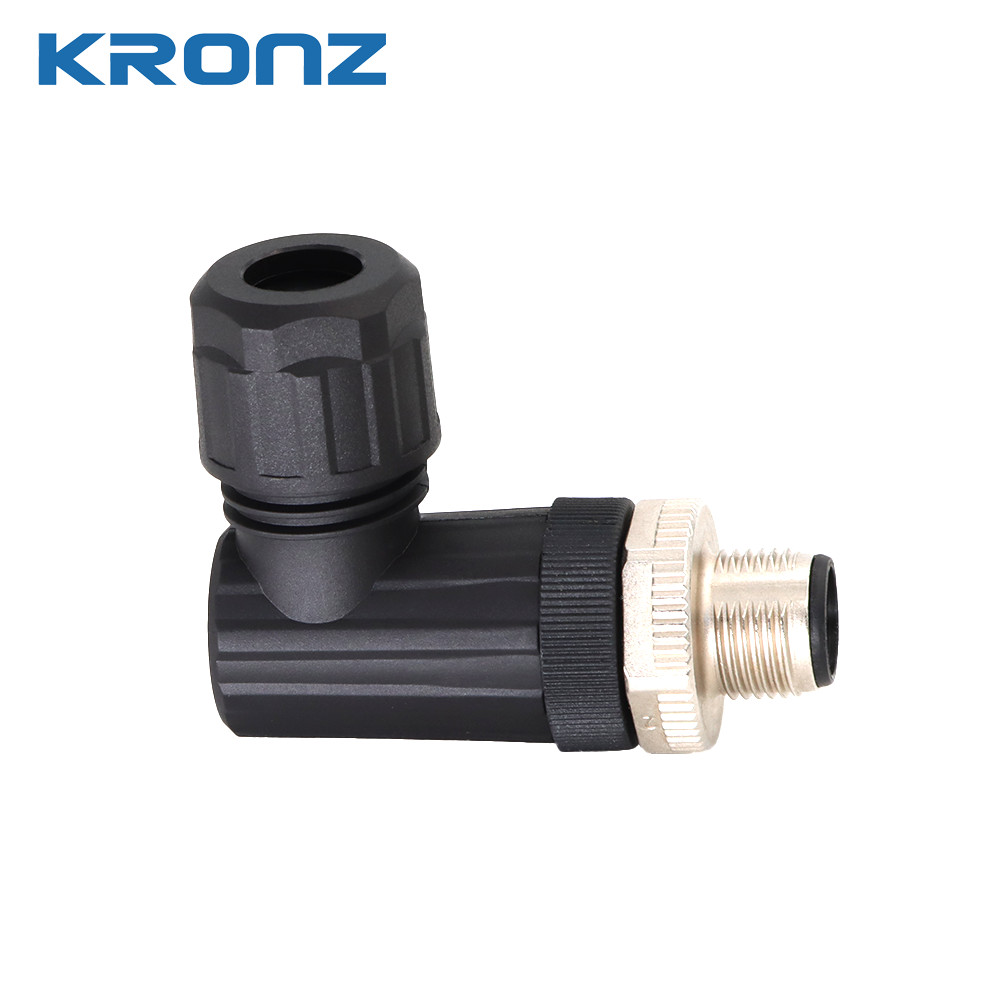

Industrial M12 Connector With Angle Cable Outlet Coding A Insulation Resistance ≥100MΩ

Product Specifications

Attribute	Value
Coding	A
Seal material	FPM/FKM
Contact carrier material	PA, Black
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Degree of protection	IP67
Mating cycles	>100
Ambient temperature	-25~+85℃

Product Overview

The M12 Male Connector features FPM/FKM seal material for excellent resistance to moisture, dust, and chemicals, ensuring long-term performance in harsh environments. Its screw connect design allows for tool-free installation, while the PA (Polyamide) contact carrier provides mechanical strength and thermal resistance.

With contact resistance ≤5mΩ, this connector minimizes energy loss and heat generation. The brass, nickel-plated contact nut offers enhanced durability and corrosion resistance for reliable connections in demanding applications.

Key Features

M12 Male Connector with angle cable outlet
FPM/FKM seal material for environmental protection
PA contact carrier material for strength and thermal resistance
Brass, nickel-plated contact nut for durability
Gold-plated brass contact surfaces
IP67 protection rating
Wide operating temperature range (-25~+85℃)

Technical Parameters

Cable Outlet Diameter	4-8mm
Contact surface material	Brass, Gold-plated
Contact nut material	Brass, Alloy
Connect	Screw Connect
Cable outlet	Angle
Rated current	4A
Voltage	60V
Pin	5

Applications

KRONZ M12 connectors are CE certified and suitable for various industrial applications with their robust design and wide temperature range (-25~+85℃). Available in 4, 5, or 8 pin configurations with voltage ratings up to 250V.

Industrial Automation: Connecting sensors, actuators, and control devices
Transportation: Railway systems and vehicle electronics
Renewable Energy: Solar panel installations and wind turbines
Manufacturing: Machine connectivity on production floors
Outdoor Applications: Lighting and surveillance systems

Support & Services

Our technical support team provides assistance with installation, troubleshooting, and maintenance. We offer training programs to help customers maximize their M12 connector systems' potential.

Packaging & Shipping

Each M12 connector is packaged in protective polybags (4 x 2 x 1 inches). Standard shipping is available with costs calculated at checkout. Minimum order quantity is 5 units with delivery in 5-8 working days.
