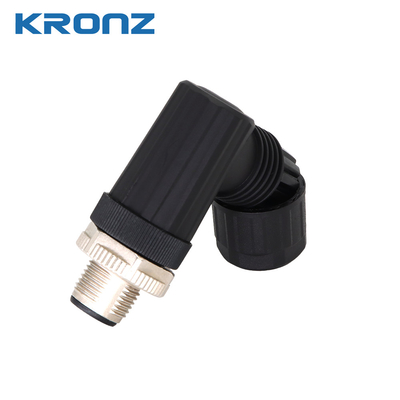

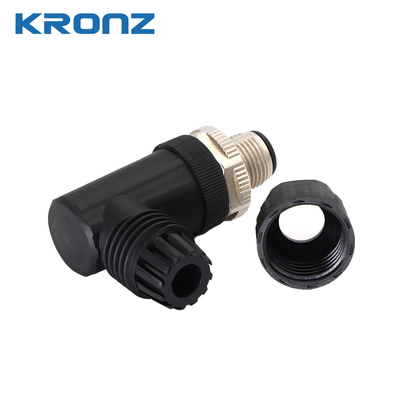

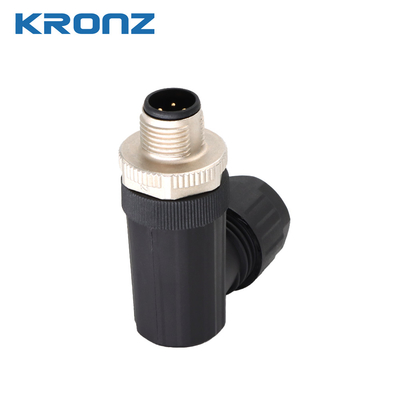

Stable Performance M12 Plug Connector 5 Pins And Nickle-plated Contact Nut Material

5
MOQ
Negotiable
Price
Stable Performance M12 Plug Connector 5 Pins And Nickle-plated Contact Nut Material
Features Gallery Product Description Request A Quote
Features
Specifications
Pollution Degree: 3
Contact Nut Material: Brass, Nickle-plated
Mating Cycles: >100
Seal Material: FPM/FKM
Contact Surface Material: Brass, Gold-plated
Rated Current: 4A
Standard: IEC 61076-2-101
Cable Outlet Diameter: 4-8mm
Highlight:

Stable Performance M12 Plug Connector

,

5 Pins M12 Plug Connector
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: H1205MA-9/L
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description
Stable Performance M12 Plug Connector 5 Pins And Nickle-plated Contact Nut Material
Product Specifications
Attribute Value
Pollution degree 3
Contact nut material Brass, Nickle-plated
Mating cycles >100
Seal material FPM/FKM
Contact surface material Brass, Gold-plated
Rated current 4A
Standard IEC 61076-2-101
Cable Outlet Diameter 4-8mm
Product Overview
The M12 Connector is a versatile and reliable product designed for various industrial applications, offering high-quality performance and durability. This pre-molded cable connector features a contact carrier material made of PA in black, ensuring strength and resistance to wear in demanding environments.
Key Features
  • Assembly connector with 5-pin configuration
  • Voltage rating: 60V
  • Screw connection mechanism
  • Rated current: 4A
  • Mating cycles: >100
  • Contact resistance: ≤5mΩ
  • Waterproof design for outdoor/industrial use
  • Angled cable outlet for flexible installation
Stable Performance M12 Plug Connector 5 Pins And Nickle-plated Contact Nut Material 0 Stable Performance M12 Plug Connector 5 Pins And Nickle-plated Contact Nut Material 1 Stable Performance M12 Plug Connector 5 Pins And Nickle-plated Contact Nut Material 2
Technical Parameters
Mating cycles >100
Housing material TPU, Black
Contact surface material Brass, Gold-plated
Pollution degree 3
Ambient temperature -25~+85℃
Contact nut material Brass, Nickle-plated
Cable Outlet Diameter 4-8mm
Coding A
Contact carrier material PA, Black
Seal material FPM/FKM
Applications
The M12 Connector is ideal for industrial automation, networking systems, and outdoor applications where reliable connections are essential. Its durable construction makes it suitable for:
  • Industrial automation systems (sensors, actuators)
  • Ethernet and fieldbus connections
  • Transportation systems
  • Outdoor surveillance and lighting
  • Harsh environment applications
Stable Performance M12 Plug Connector 5 Pins And Nickle-plated Contact Nut Material 3 Stable Performance M12 Plug Connector 5 Pins And Nickle-plated Contact Nut Material 4
Support & Services
  • Installation and setup assistance
  • Troubleshooting guidance
  • Product training resources
  • Warranty support for defective products
Stable Performance M12 Plug Connector 5 Pins And Nickle-plated Contact Nut Material 5
Packaging & Shipping
Each M12 Connector is individually wrapped in bubble wrap and packed in sturdy cardboard boxes to ensure safe delivery. Orders are processed within 1-2 business days with tracking information provided.
Stable Performance M12 Plug Connector 5 Pins And Nickle-plated Contact Nut Material 6 Stable Performance M12 Plug Connector 5 Pins And Nickle-plated Contact Nut Material 7
