4A Current M12 Connector Angle Cable Outlet IP67 Protection For Industrial Applications

5
MOQ
Negotiable
Price
4A Current M12 Connector Angle Cable Outlet IP67 Protection For Industrial Applications
Features Gallery Product Description Request A Quote
Features
Specifications
Rated Current: 4A/2A
Pin: 4
Insulation Resistance: ≥100MΩ
Housing Material: TPU, Black
Cable Outlet Diameter: 4-8mm
Mating Cycles: >100
Connect: Screw Connect
Voltage: 250V
Highlight:

Industrial Applications M12 Connector

,

Angle Cable Outlet M12 Connector

,

IP67 Protection M12 Connector
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: H1204MA-9/L
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description
4A Current M12 Connector Angle Cable Outlet IP67 Protection For Industrial Applications
Product Specifications
Attribute Value
Rated current 4A/2A
Pin 4
Insulation resistance ≥100MΩ
Housing material TPU, Black
Cable Outlet Diameter 4-8mm
Mating cycles >100
Connect Screw Connect
Voltage 250V
Product Overview
The M12 Connector features a high-quality brass contact surface with gold-plated finish, ensuring excellent conductivity and corrosion resistance for reliable performance in demanding industrial environments.
Key Features
  • Rated current: 4A for power transmission, 2A for signal transmission
  • Compliant with IEC 61076-2-101 standard
  • Contact nut material: Brass alloy
  • Gold-plated brass contact surface
  • TPU black housing material
  • Screw connection mechanism for secure installation
  • IP67 protection rating

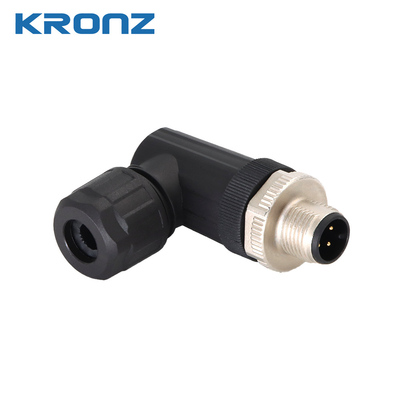

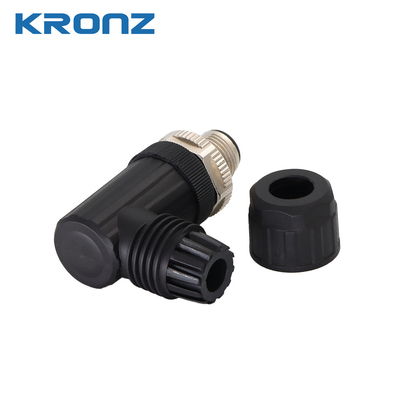

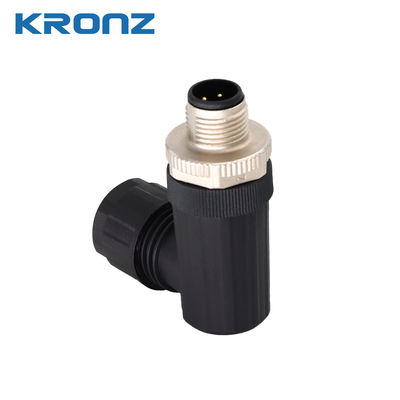

4A Current M12 Connector Angle Cable Outlet IP67 Protection For Industrial Applications 0 4A Current M12 Connector Angle Cable Outlet IP67 Protection For Industrial Applications 1 4A Current M12 Connector Angle Cable Outlet IP67 Protection For Industrial Applications 2
Technical Parameters
Parameter Specification
Coding A
Voltage 250V
Connection Screw Connect
Rated current 4A
Cable outlet Angle
Contact carrier material PA, Black
Contact resistance ≤5mΩ
Pollution degree 3
Applications
The M12 Connector is ideal for industrial machinery, automation systems, sensor connections, and control applications where reliable electrical connectivity is essential. Its robust construction and compliance with international standards make it suitable for demanding environments.
4A Current M12 Connector Angle Cable Outlet IP67 Protection For Industrial Applications 3 4A Current M12 Connector Angle Cable Outlet IP67 Protection For Industrial Applications 4
Support and Services
Our product comes with comprehensive technical support to ensure smooth operation. Our dedicated team is available to assist with technical inquiries, troubleshooting, and guidance on product usage.
4A Current M12 Connector Angle Cable Outlet IP67 Protection For Industrial Applications 5
Packaging and Shipping
The M12 Connector is carefully packaged in sturdy cardboard boxes with protective bubble wrap to ensure safe transportation. Orders are typically processed within 1-2 business days and shipped via trusted carriers for timely delivery.
4A Current M12 Connector Angle Cable Outlet IP67 Protection For Industrial Applications 6 4A Current M12 Connector Angle Cable Outlet IP67 Protection For Industrial Applications 7
