Screw Connect M12 Connector Male 4 Pin For Heavy Duty Applications Rated Current 4A
  • Name
  • Name
  • Name

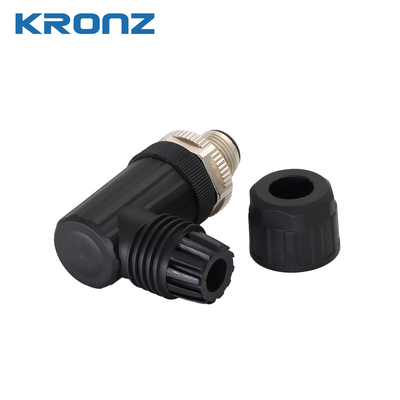

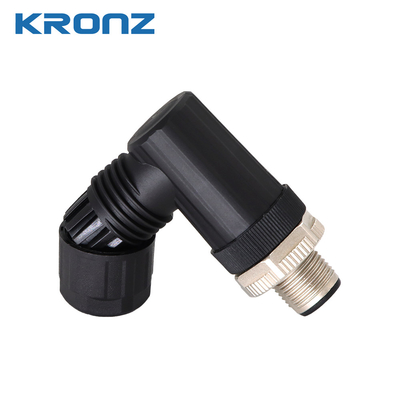

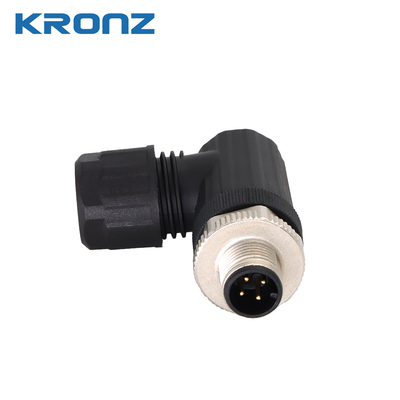

Screw Connect M12 Connector Male 4 Pin For Heavy Duty Applications Rated Current 4A

Brand Name: KRONZ
Model Number: H1204MA-9/L
MOQ: 5
Price: Negotiable
Packaging Details: Polybag packing
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Voltage:
250V
Seal Material:
FPM/FKM
Housing Material:
TPU, Black
Coding:
A
Connect:
Screw Connect
Contact Nut Material:
Alloy, Brass
Rated Current:
4A
Contact Resistance:
≤5mΩ
Supply Ability:
100000 pieces per month
Highlight:

Heavy Duty Applications M12 Connector

,

4 Pin M12 Connector

,

Screw Connect M12 Connector

Product Description
Screw Connect M12 Connector Male 4 Pin For Heavy Duty Applications Rated Current 4A
Product Specifications
Attribute Value
Voltage 250V
Seal material FPM/FKM
Housing material TPU, Black
Coding A
Connect Screw Connect
Contact nut material Alloy, brass
Rated current 4A
Contact resistance ≤5mΩ
Product Overview

The M12 Male Connector with Screw Connect mechanism provides secure, reliable connections for heavy-duty applications. Featuring excellent electrical insulation (≥100MΩ) and an angled cable outlet for flexible installation, this connector is built for demanding environments.

Key Features
  • M12 Straight Cable Connector with 4-pin configuration
  • 250V voltage rating with 4A current capacity
  • FPM/FKM seal material for superior protection
  • PA contact carrier and TPU housing (black)
  • IP67 degree of protection
  • Brass, nickel-plated contact nut material
  • Gold-plated brass contact surfaces
  • Compliant with IEC 61076-2-101 standard
Screw Connect M12 Connector Male 4 Pin For Heavy Duty Applications Rated Current 4A 0 Screw Connect M12 Connector Male 4 Pin For Heavy Duty Applications Rated Current 4A 1 Screw Connect M12 Connector Male 4 Pin For Heavy Duty Applications Rated Current 4A 2
Technical Parameters
Pin 4
Voltage 250V
Insulation resistance ≥100MΩ
Cable Outlet Diameter 4-8mm
Pollution degree 3
Ambient temperature range -25°C to +85°C
Applications

The M12 Connector is ideal for various industrial applications requiring reliable connections in challenging environments:

  • Industrial Automation: Factories, production lines, and machinery
  • Robotics: High-vibration environments with durable connections
  • Automotive Industry: Sensors, actuators, and electronic components
  • Outdoor Applications: Withstands extreme temperatures (-25°C to +85°C)
  • Renewable Energy: Solar panels and wind turbines
Screw Connect M12 Connector Male 4 Pin For Heavy Duty Applications Rated Current 4A 3 Screw Connect M12 Connector Male 4 Pin For Heavy Duty Applications Rated Current 4A 4
Support and Services

Our technical support team provides comprehensive assistance with installation, troubleshooting, and maintenance. We offer detailed product documentation and expert guidance to ensure optimal performance.

Screw Connect M12 Connector Male 4 Pin For Heavy Duty Applications Rated Current 4A 5
Packaging and Shipping

Each M12 Connector is securely packaged and shipped within 1-2 business days after order confirmation. Package includes one waterproof, durable M12 connector ready for industrial installation.

Screw Connect M12 Connector Male 4 Pin For Heavy Duty Applications Rated Current 4A 6 Screw Connect M12 Connector Male 4 Pin For Heavy Duty Applications Rated Current 4A 7
