Connect Screw Connect M12 Plug Circular Connector For Temperature Environments

Brand Name:	KRONZ
Model Number:	H1208MA-9/L
MOQ:	5
Price:	Negotiable
Packaging Details:	Polybag packing
Payment Terms:	T/T, Western Union,

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

Guangdong, China

Certification:

Document:

Product Brochure PDF

Insulation Resistance:

≥100MΩ

Ambient Temperature:

-25~+85℃

Voltage:

30V

Contact Resistance:

≤5mΩ

Contact Carrier Material:

PA, Black

Standard:

IEC 61076-2-101

Cable Outlet:

Angle

Mating Cycles:

>100

Supply Ability:

100000 pieces per month

Highlight:

Temperature Environments M12 Plug

Connect Screw M12 Plug

Circular Connector M12 Plug

Product Description

Connect Screw Connect M12 Plug Circular Connector For Temperature Environments

Product Overview

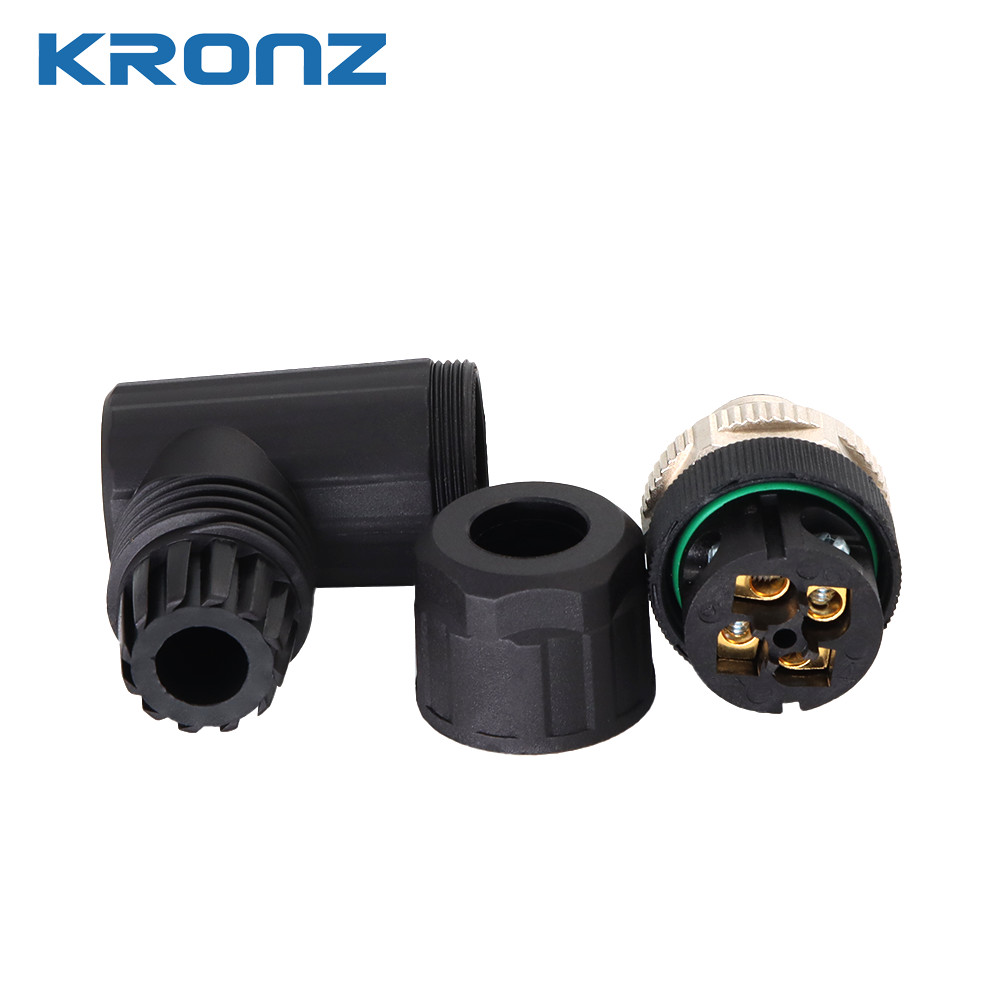

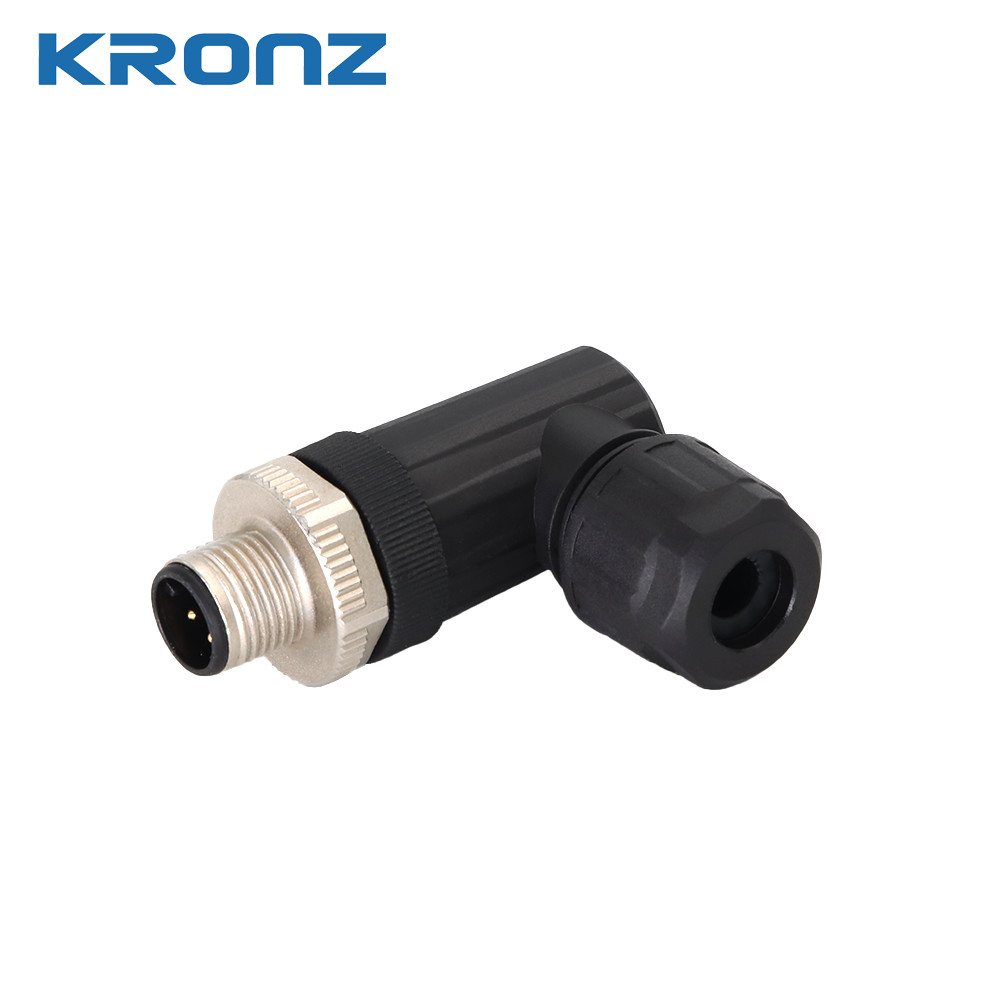

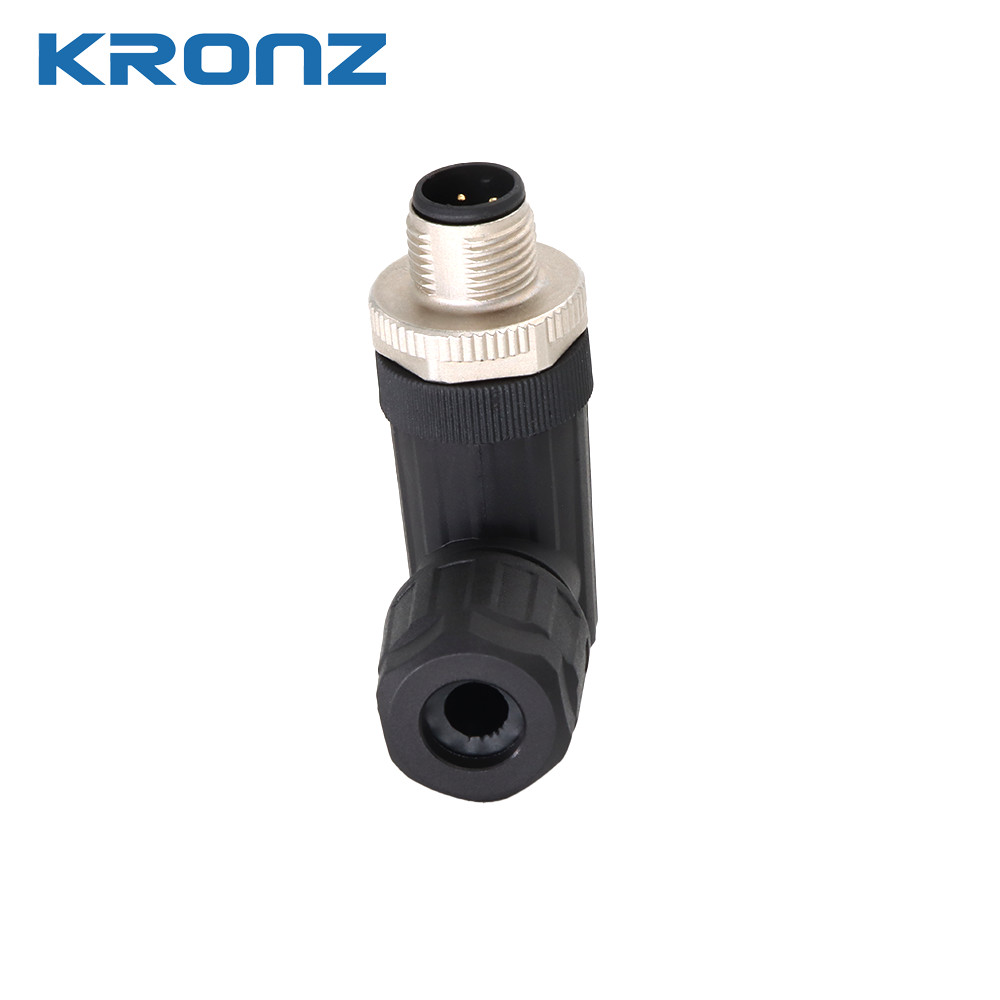

The M12 Connector is a versatile and reliable circular connector designed for industrial applications requiring secure connections in challenging environments. With coding type A, this waterproof connector ensures accurate mating and consistent performance.

Key Specifications

Attribute	Value
Insulation resistance	≥100MΩ
Ambient temperature	-25~+85℃
Voltage	30V
Contact resistance	≤5mΩ
Contact carrier material	PA, Black
Standard	IEC 61076-2-101
Cable outlet	Angle
Mating cycles	>100

Product Features

8-pin waterproof connector design
Rated voltage: 30V
Wide operating temperature range (-25~+85℃)
High insulation resistance (≥100MΩ)
Durable PA contact carrier material
IEC 61076-2-101 compliant
Brass nickel-plated contact nuts for corrosion resistance
Gold-plated brass contact surfaces

Technical Parameters

Pollution degree	3
Contact resistance	≤5mΩ
Contact surface material	Brass, Gold-plated
Coding	A
Rated current	2A
Contact nut material	Brass, Nickel-plated

Applications

The M12 connector is ideal for industrial automation, machinery, and sensor applications where reliable connections in harsh environments are required. Its angled cable design provides installation flexibility in space-constrained scenarios.

Support and Services

Comprehensive technical support is available for all M12 connector products. Our team provides expert assistance for installation, troubleshooting, and application-specific guidance.

Packaging and Shipping

Each M12 connector is individually packaged in protective plastic bags and shipped in sturdy cardboard boxes to ensure safe delivery. Standard packaging includes:

Individual plastic bag protection
Secure cardboard box packaging
Tamper-evident sealing
