Professional M12 Connector Rated Current 4A Brass Contact Surface Black Housing Material

Brand Name:	KRONZ
Model Number:	H1205MA-9/L
MOQ:	5
Price:	Negotiable
Packaging Details:	Polybag packing
Payment Terms:	T/T, Western Union,

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

Guangdong, China

Certification:

Document:

Product Brochure PDF

Rated Current:

Pin:

Insulation Resistance:

≥100MΩ

Voltage:

60V

Cable Outlet:

Angle

Degree Of Protection:

IP67

Pollution Degree:

Ambient Temperature:

-25~+85℃

Supply Ability:

100000 pieces per month

Highlight:

4A M12 Connector

Black Housing Material M12 Connector

Brass Contact Surface M12 Connector

Product Description

Professional M12 Connector Rated Current 4A Brass Contact Surface Black Housing Material

Product Attributes

Attribute	Value
Rated current	4A
Pin	5
Insulation resistance	≥100MΩ
Voltage	60V
Cable outlet	Angle
Degree of protection	IP67
Pollution degree	3
Ambient temperature	-25~+85℃

Product Description

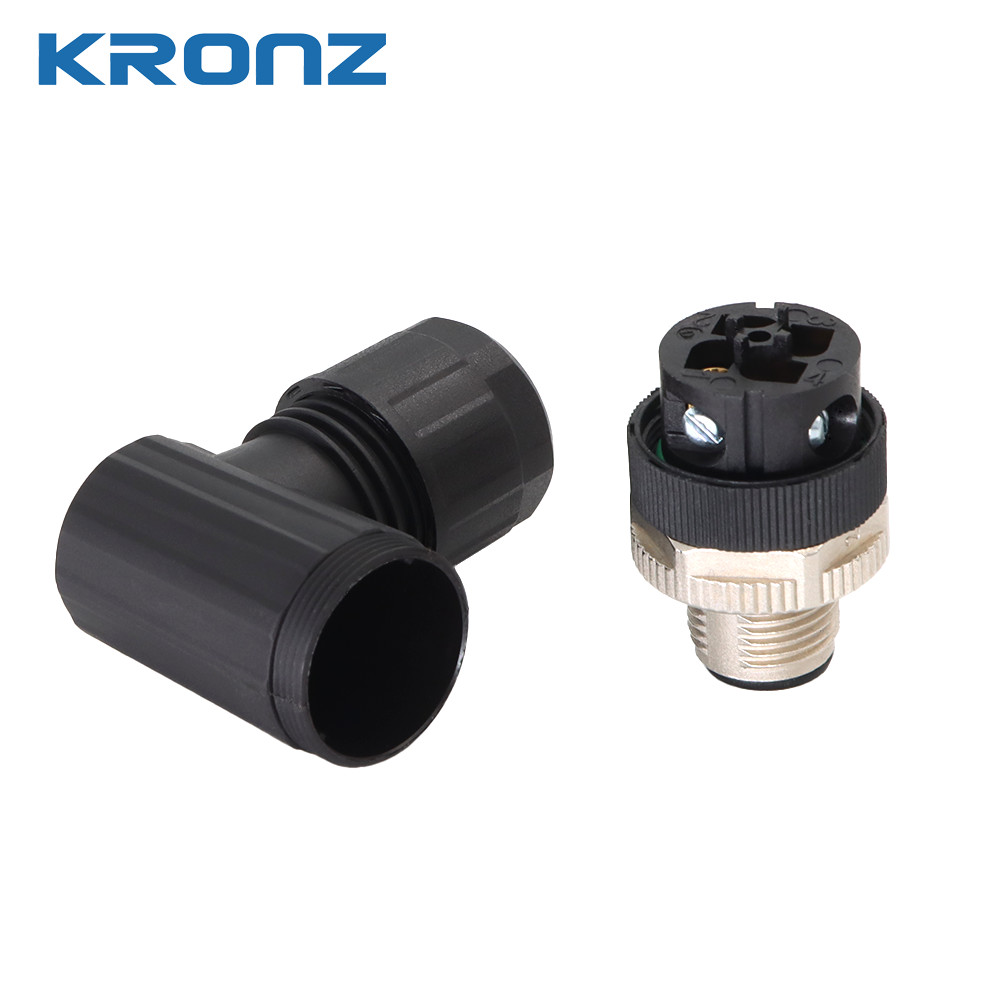

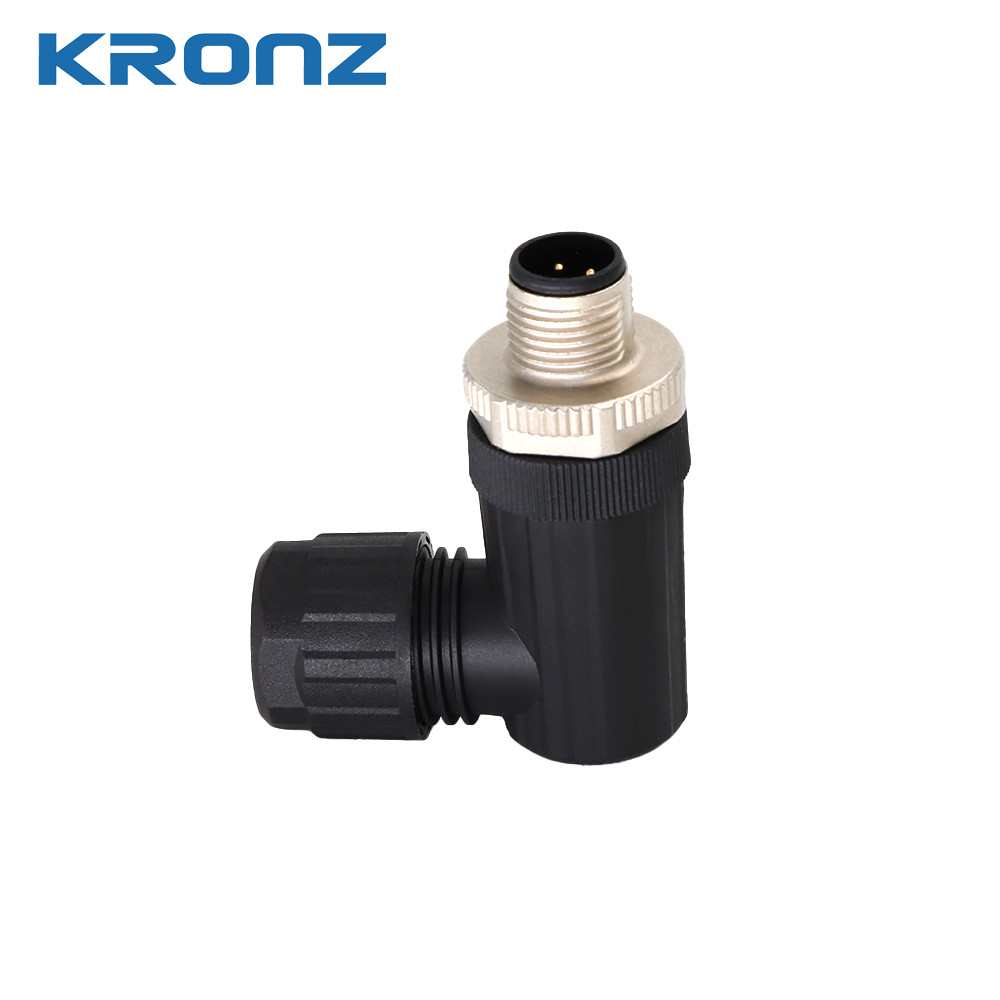

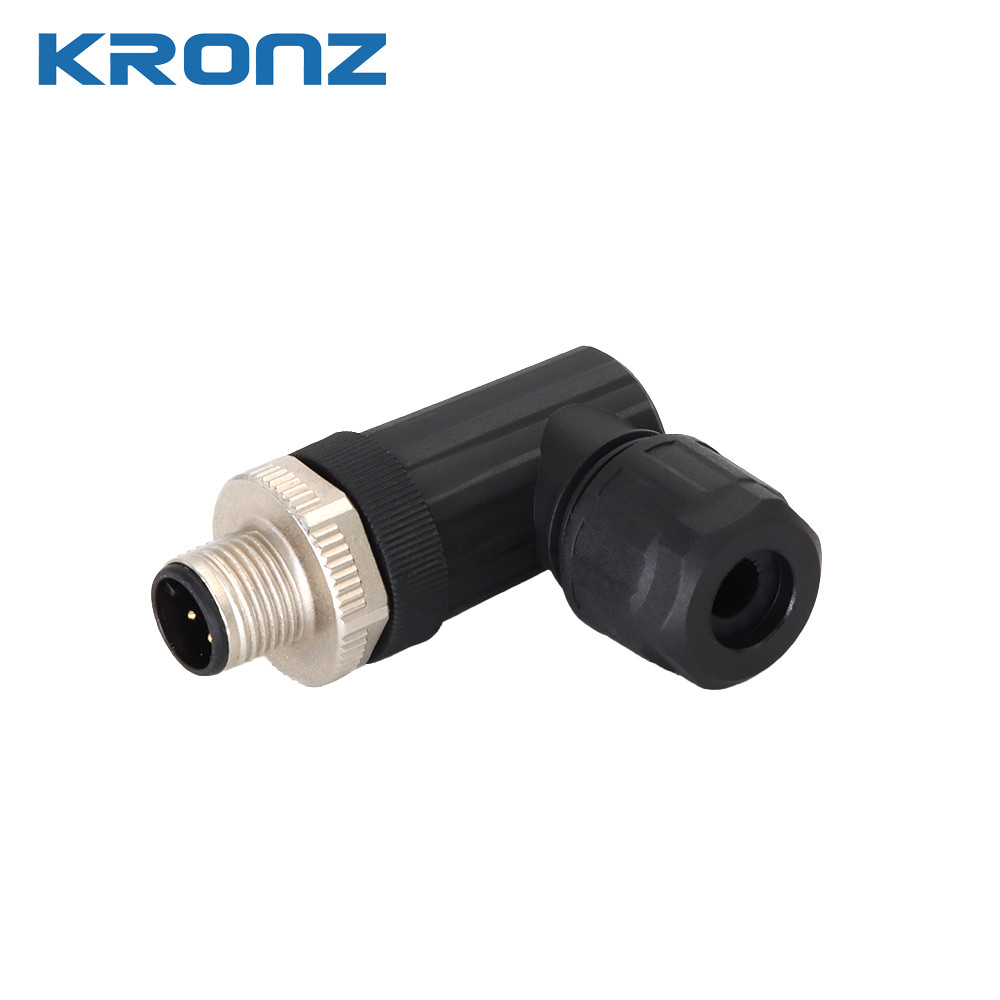

The M12 Female Connector is a versatile assembly connector designed for various industrial applications. With a screw connect feature, this M12 5 pin Connector ensures a stable and robust connection, ideal for environments where vibration or movement may occur.

Designed to accommodate cables with an outlet diameter of 4-8mm, the M12 Connector offers flexibility in cable selection while maintaining a secure fit. Available with options for 4, 5, or 8 pins, providing versatile connectivity for different systems and devices.

Key Features

Product Name: M12 Connector
Mating cycles: >100
Pin: 5
Contact carrier material: PA, Black
Insulation resistance: ≥100MΩ
Connect: Screw Connect

Technical Parameters

Contact surface material	Brass, Gold-plated
Contact resistance	≤5mΩ
Connect	Screw Connect
Insulation resistance	≥100MΩ
Cable Outlet Diameter	4-8mm
Degree of protection	IP67
Coding	A
Mating cycles	>100
Cable outlet	Angle
Seal material	FPM/FKM

Applications

The KRONZ M12 Connector is a versatile and reliable product suitable for various industrial applications. With CE certification, it ensures safety and compliance with international standards. Available in 4/5/8 pin configurations with a minimum order quantity of 5 pieces.

Support and Services

Our product comes with comprehensive technical support to assist with any queries or issues. Our expert team provides troubleshooting, installation support, and product information to ensure optimal performance.

Packing and Shipping

The M12 Connector is carefully packaged in sturdy cardboard boxes to ensure safe delivery. We offer worldwide shipping with orders typically processed within 1-2 business days.
