Insulation Resistance ≥100MΩ M12 Connector IP67 Protection for Heavy-Duty Applications
  • Name
  • Name
  • Name

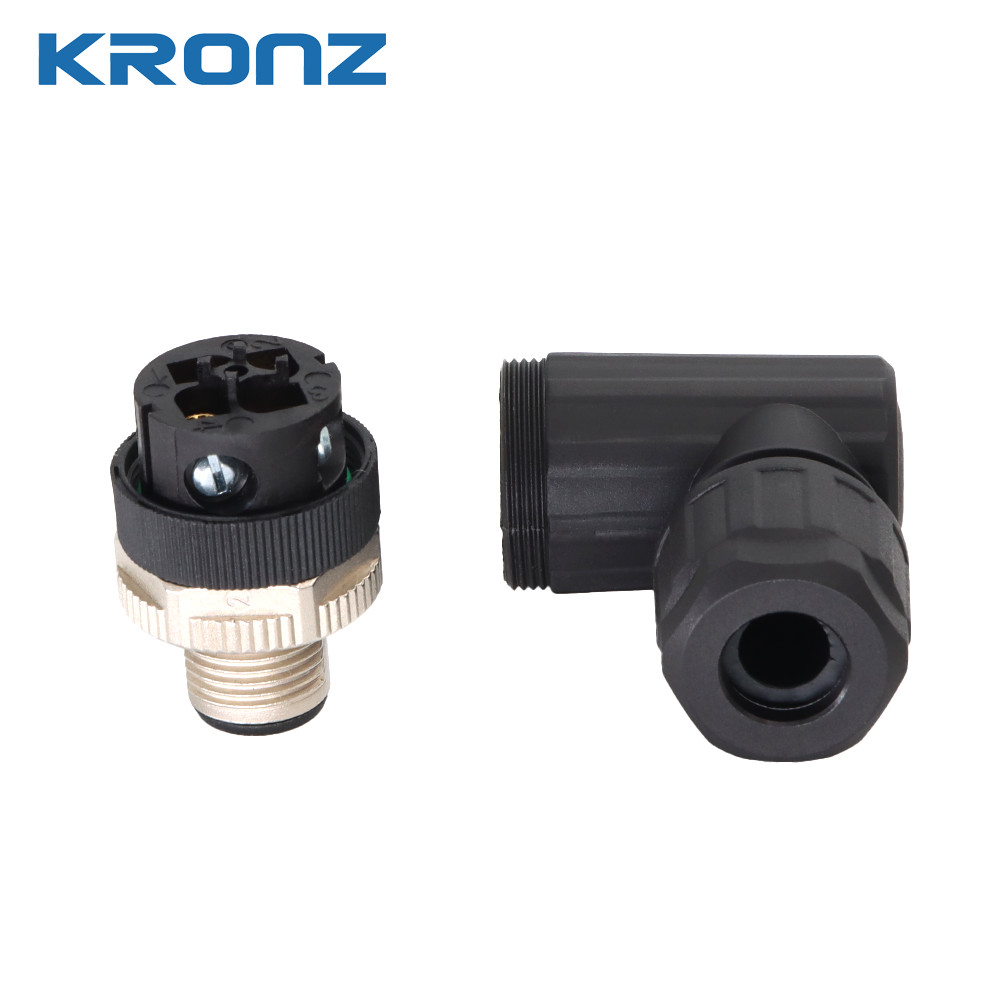

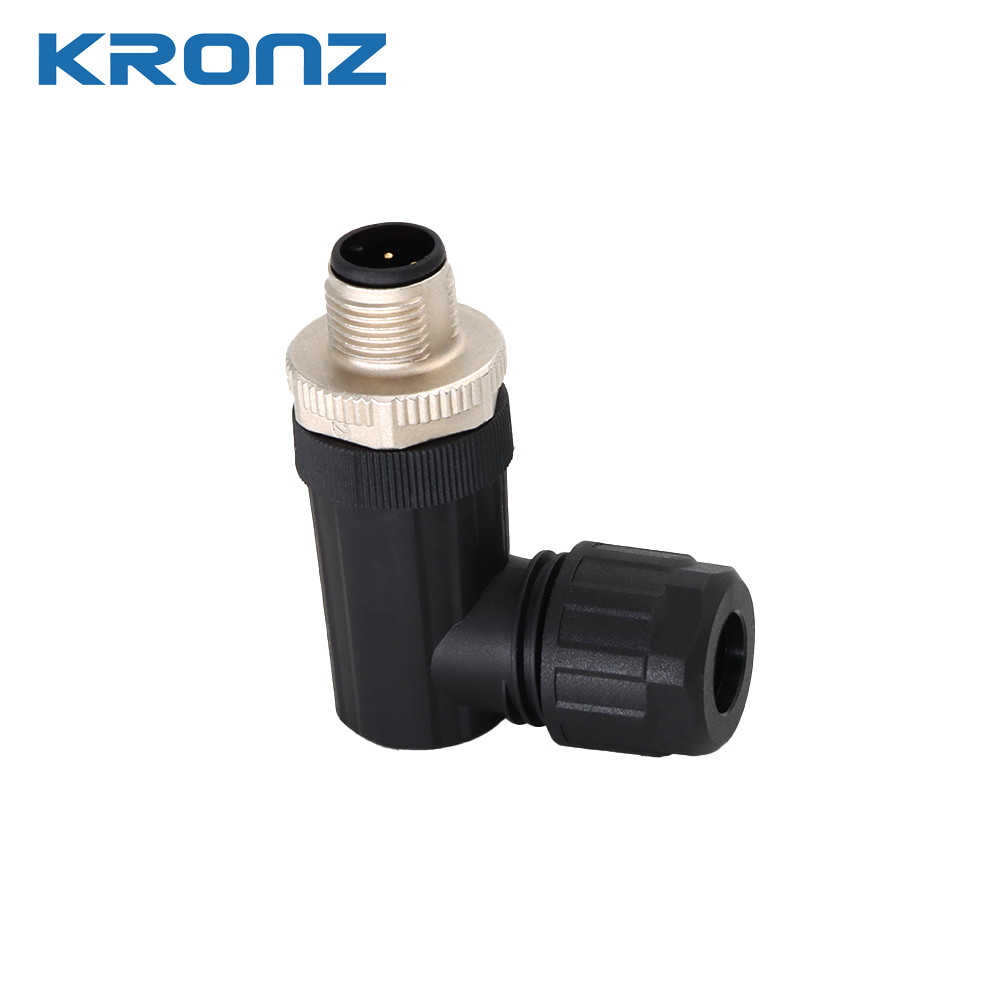

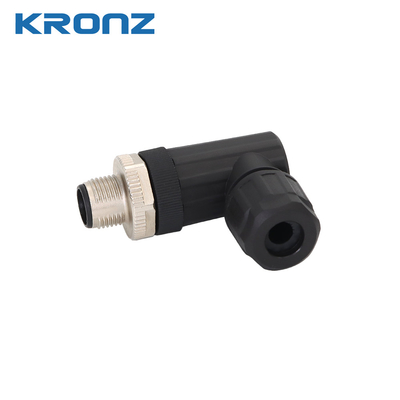

Insulation Resistance ≥100MΩ M12 Connector IP67 Protection for Heavy-Duty Applications

Brand Name: KRONZ
Model Number: H1204MA-9/L
MOQ: 5
Price: Negotiable
Packaging Details: Polybag packing
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Contact Nut Material:
Alloy, Brass
Insulation Resistance:
≥100MΩ
Contact Surface Material:
Brass, Gold-plated
Seal Material:
FPM/FKM
Mating Cycles:
>100
Cable Outlet Diameter:
4-8mm
Cable Outlet:
Angle
Coding:
A
Supply Ability:
100000 pieces per month
Highlight:

Heavy Duty M12 Connector

,

100MΩ M12 Connector

,

IP67 Protection M12 Connector

Product Description
Insulation Resistance ≥100MΩ M12 Connector IP67 Protection for Heavy-Duty Applications
Product Attributes
Attribute Value
Contact nut material Alloy, Brass
Insulation resistance ≥100MΩ
Contact surface material Brass, Gold-plated
Seal material FPM/FKM
Mating cycles >100
Cable Outlet Diameter 4-8mm
Cable outlet Angle
Coding A
Product Description

The M12 Circular Connector is a versatile and reliable product designed for demanding industrial applications. With an operating temperature range of -25°C to +85°C, this connector delivers consistent performance in various environmental conditions.

Key features include:

  • Low contact resistance (≤5mΩ) for efficient power transmission
  • Gold-plated brass contacts for enhanced conductivity and corrosion resistance
  • Excellent insulation resistance (≥100MΩ) for electrical safety
  • Screw connect mechanism for secure, stable connections
  • Available as pre-molded cable or assembly connector
Insulation Resistance ≥100MΩ M12 Connector IP67 Protection for Heavy-Duty Applications 0 Insulation Resistance ≥100MΩ M12 Connector IP67 Protection for Heavy-Duty Applications 1 Insulation Resistance ≥100MΩ M12 Connector IP67 Protection for Heavy-Duty Applications 2
Technical Specifications
Parameter Value
Housing material TPU, Black
Insulation resistance ≥100MΩ
Coding A
Mating cycles >100
Pin count 4
Rated current 4A/2A
Voltage 250V
Protection rating IP67
Pollution degree 3
Seal material FPM/FKM
Applications

The KRONZ M12 Angled Cable Connector is ideal for various industrial applications:

  • Industrial Automation: Secure connections for sensors and actuators
  • Machinery Manufacturing: Compact design for tight spaces
  • Automotive Industry: Durable construction for vehicle electronics
  • Robotics: Reliable performance for robotic systems
Insulation Resistance ≥100MΩ M12 Connector IP67 Protection for Heavy-Duty Applications 3 Insulation Resistance ≥100MΩ M12 Connector IP67 Protection for Heavy-Duty Applications 4
Support and Services

Our comprehensive technical support includes:

  • Installation guidance and troubleshooting
  • Product training and customization
  • Warranty support
Insulation Resistance ≥100MΩ M12 Connector IP67 Protection for Heavy-Duty Applications 5
Packaging and Shipping

Package includes:

  • 1 M12 Connector
  • Instruction manual

Shipping details:

  • Standard shipping
  • 5-7 business day delivery
Insulation Resistance ≥100MΩ M12 Connector IP67 Protection for Heavy-Duty Applications 6 Insulation Resistance ≥100MΩ M12 Connector IP67 Protection for Heavy-Duty Applications 7
