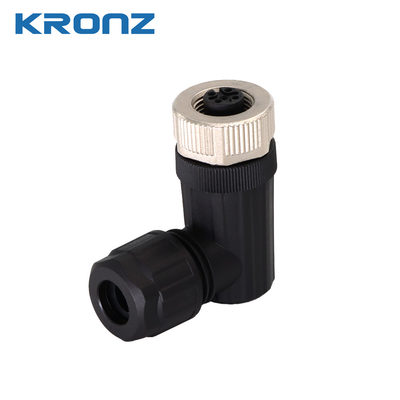

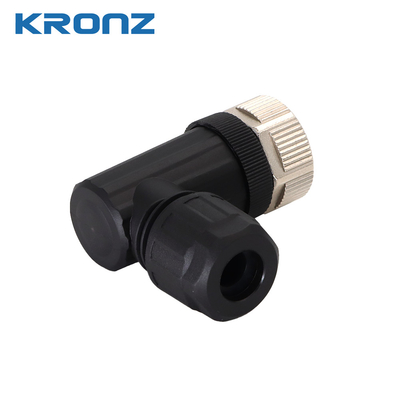

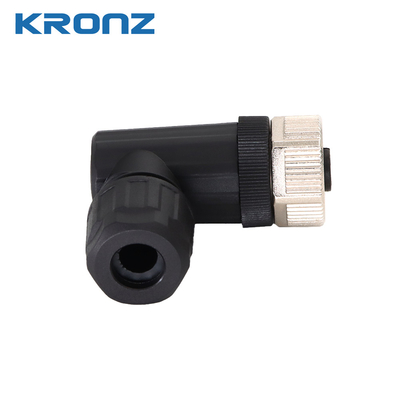

M12 Connector 4 Pin Waterproof IP67 Cable Outlet Diameter 4-8mm Field-wirable Connectors

Brand Name:	KRONZ
Model Number:	H1204FA-9/L
MOQ:	5
Price:	Negotiable
Packaging Details:	Polybag packing
Payment Terms:	T/T, Western Union,

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

Guangdong, China

Certification:

Document:

Product Brochure PDF

Rated Current:

Standard:

IEC 61076-2-101

Connect:

Screw Connection

Mating Cycles:

>100

Pollution Degree:

Degree Of Protection:

IP67

Housing Material:

TPU, Black

Cable Outlet Diameter:

4-8mm

Supply Ability:

100000 pieces per month

Highlight:

IP67 M12 Connector

4 Pin M12 Connector

Waterproof M12 Connector

Product Description

M12 Connector 4 Pin Waterproof IP67 Cable Outlet Diameter 4-8mm Field-wirable Connectors

Product Attributes

Attribute	Value
Rated current	4A
Standard	IEC 61076-2-101
Connect	Screw Connection
Mating cycles	>100
Pollution degree	3
Degree of protection	IP67
Housing material	TPU, Black
Cable Outlet Diameter	4-8mm

Product Description

The M12 Connector is a versatile and reliable industrial connectivity solution featuring robust construction with TPU housing and ABS/PA contact carrier materials. Designed for demanding environments, it operates in temperatures from -25°C to +85°C and handles voltages up to 250V.

Key Features

Product Name: M12 Connector
Insulation resistance: ≥100MΩ
Seal material: NBR
Contact nut material: Brass, Alloy
Housing material: TPU, Black
Standard: IEC 61076-2-101

Technical Specifications

Parameter	Value
Clamp matrix material	ABS, PBT/PA, Black
Contact surface material	Brass, Gold-plated
Pollution degree	3
Degree of protection	IP67
Mating cycles	>100
Contact carrier material	ABS, PA, Black
Insulation resistance	≥100MΩ

Applications

Ideal for industrial automation, machinery, robotics, and harsh environments. Suitable for connecting sensors, actuators, and motors with secure screw connections that withstand vibration and movement. The NBR seal provides excellent protection against moisture and dust.

Support & Services

Product installation and setup assistance
Connectivity troubleshooting guidance
Product knowledge and usage training
Warranty information and support

Packaging & Shipping

The M12 Connector is securely packaged in protective cardboard boxes with padding to prevent damage during transit. Shipped via reliable courier with tracking number provided for delivery monitoring.
