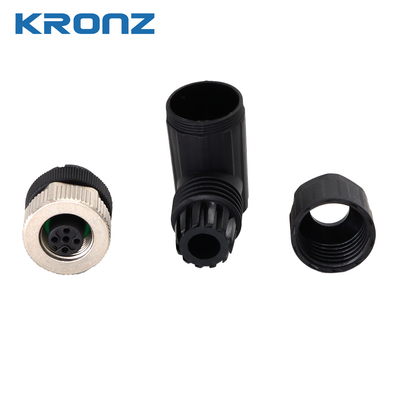

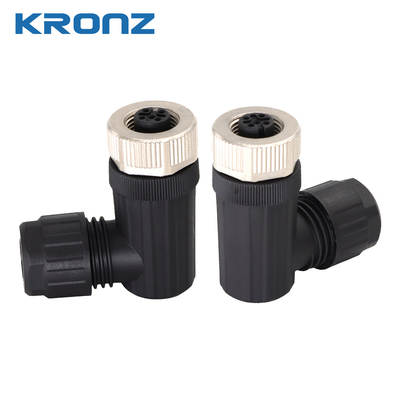

M12 Female Circular Connectors Angled IP67 Field Wirable Assembly 8-pin Connector

Brand Name:	KRONZ
Model Number:	H1208FA-9/L
MOQ:	5
Price:	Negotiable
Packaging Details:	Polybag packing
Payment Terms:	T/T, Western Union,

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

Guangdong, China

Certification:

Document:

Product Brochure PDF

Insulation Resistance:

≥100MΩ

Contact Carrier Material:

ABS, PA, Black

Degree Of Protection:

IP67

Gender:

Female

Mating Cycles:

>100

Housing Material:

TPU, Black

Contact Resistance:

≤5mΩ

Standard:

IEC 61076-2-101

Supply Ability:

100000 pieces per month

Highlight:

Field Wirable M12 Female Circular Connectors

8-pin M12 Female Circular Connectors

IP67 M12 Female Circular Connectors

Product Description

M12 Female Circular Connectors Angled IP67 Field Wirable Assembly 8-pin Connector

Product Specifications

Attribute	Value
Insulation resistance	≥100MΩ
Contact carrier material	ABS, PA, Black
Degree of protection	IP67
Gender	Female
Mating cycles	>100
Housing material	TPU, Black
Contact resistance	≤5mΩ
Standard	IEC 61076-2-101

Product Overview

The M12 Circular Connector is a versatile and reliable solution for industrial applications. With pollution degree 3 rating, this connector withstands harsh environments while maintaining consistent performance. The angled cable outlet provides installation flexibility and efficient cable routing in space-constrained areas.

Key Features

M12 Female Connector with field-wirable assembly
Circular design with angled cable outlet (4-8mm diameter)
High insulation resistance: ≥100MΩ
Wide operating temperature range: -25°C to +85°C
Standard A coding prevents mismating
Durable construction with >100 mating cycles

Technical Parameters

Coding	A
Degree of protection	IP67
Voltage	30V
Contact resistance	≤5mΩ
Mating cycles	>100
Contact surface material	Brass, Gold-plated
Cable outlet	Angle
Connection type	Screw Connection
Clamp matrix material	ABS, PBT/PA, Black
Ambient temperature	-25~+85℃

Applications

The KRONZ M12 Angled Cable Connector is ideal for industrial automation, machinery, and control systems requiring reliable connectivity in harsh environments. Its robust design and CE certification make it suitable for:

Factory automation equipment
Industrial control systems
Sensor and actuator connections
Robotics applications

Support and Services

Our technical support team provides comprehensive assistance for installation, troubleshooting, and maintenance of M12 connectors. We offer expert guidance to ensure optimal performance of your connectivity solutions.

Packaging and Shipping

Each M12 connector is securely packaged in protective plastic casing within sturdy cardboard boxes. We use reliable courier services with full tracking information for safe and timely delivery.
