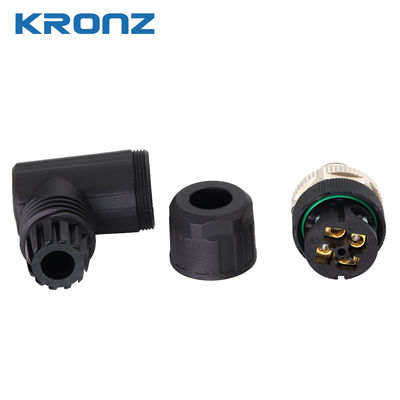

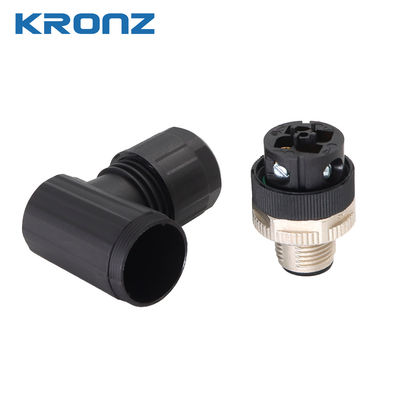

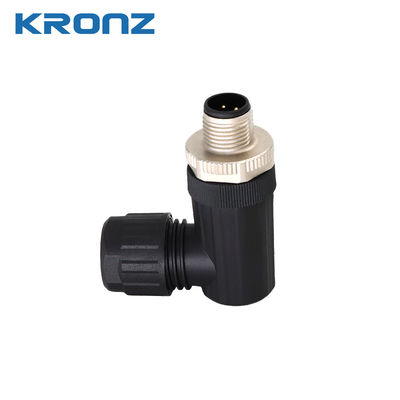

M12 Sensor Connector Angled Screw Waterproof IP67 Circular Connectors 5-pin A Code

Brand Name:	KRONZ
Model Number:	H1205MA-9/L
MOQ:	5
Price:	Negotiable
Packaging Details:	Polybag packing
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

Document:

Product Brochure PDF

Connect:

Screw Connection

Mating Cycles:

>100

Contact Nut Material:

Brass, Alloy

Voltage:

60V

Cable Outlet Diameter:

4-8mm

Contact Surface Material:

Brass, Gold-plated

Standard:

IEC 61076-2-101

Pin:

Supply Ability:

100000 pieces per month

Highlight:

Angled Screw Circular Connectors

IP67 Circular Connectors

5-pin Circular Connectors

Product Description

M12 Sensor Connector Angled Screw Waterproof IP67 Circular Connectors 5-pin A Code

Product Specifications

Attribute	Value
Connect	Screw Connection
Mating cycles	>100
Contact nut material	Brass, Alloy
Voltage	60V
Cable Outlet Diameter	4-8mm
Contact surface material	Brass, Gold-plated
Standard	IEC 61076-2-101
Pin	5

Product Overview

The M12 Connector is a high-performance circular connector designed for industrial applications, featuring a durable screw connection mechanism and IP67 waterproof rating. Its robust construction ensures reliable performance in demanding environments.

Key Features

5-pin A-coded M12 connector with screw locking mechanism
Rated current: 4A with 60V voltage capacity
High-quality materials: Brass alloy contacts with gold plating
Durable construction with ABS, PBT/PA clamp matrix
Wide operating temperature range: -25°C to +85°C
Angled cable outlet for flexible installation
IP67 protection against dust and water immersion

Technical Parameters

Parameter	Value
Insulation resistance	≥100MΩ
Connect type	Screw Connection
Seal material	NBR
Contact resistance	≤5mΩ
Contact carrier material	ABS, PA, Black
Standard compliance	IEC 61076-2-101
Mating cycles	>100

Applications

The M12 Connector is ideal for industrial automation, sensor networks, and electrical installations requiring reliable, waterproof connections. Its versatile design makes it suitable for:

Factory automation systems
Industrial sensor connections
Robotics and motion control
Process control equipment
Outdoor industrial applications

Support & Services

Our comprehensive support includes technical assistance, installation guidance, and maintenance recommendations to ensure optimal performance of your M12 connectors.

Packaging & Shipping

Each M12 Connector is individually packaged in protective polybags. Standard shipping delivers within 3-5 business days.
