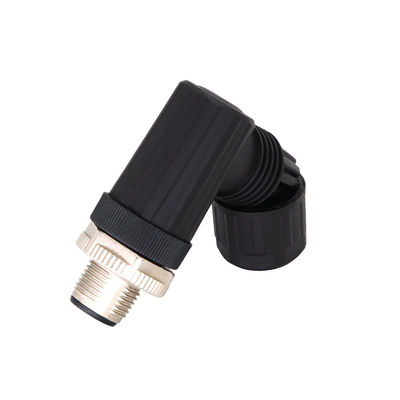

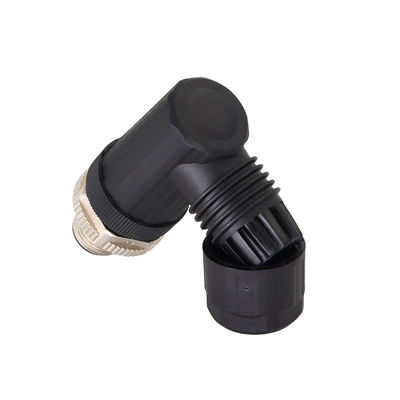

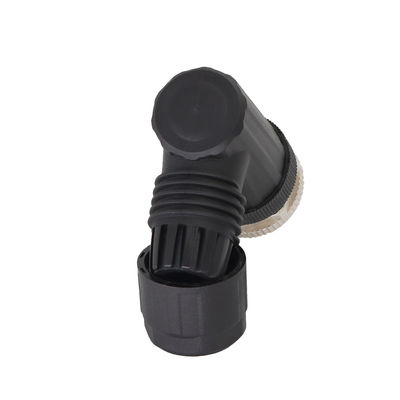

Angle Outlet 4-8mm Gold-plated Contact Surface M12 Connector for Coding Applications

Brand Name:	KRONZ
Model Number:	H1208MA-9/L
MOQ:	5
Price:	Negotiable
Packaging Details:	Polybag packing
Payment Terms:	T/T, Western Union,

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

Guangdong, China

Certification:

Document:

Product Brochure PDF

Ambient Temperature:

-25~+85℃

Connect:

Screw Connection

Cable Outlet Diameter:

4-8mm

Seal Material:

NBR

Coding:

Standard:

IEC 61076-2-101

Insulation Resistance:

≥100MΩ

Degree Of Protection:

IP67

Supply Ability:

100000 pieces per month

Highlight:

Gold Plated Contact Surface M12 Connector

Coding Applications M12 Connector

Angle Outlet M12 Connector

Product Description

Angle Outlet 4-8mm Gold-plated Contact Surface M12 Connector for Coding Applications

Product Attributes

Attribute	Value
Ambient temperature	-25~+85℃
Connect	Screw Connection
Cable Outlet Diameter	4-8mm
Seal material	NBR
Coding	A
Standard	IEC 61076-2-101
Insulation resistance	≥100MΩ
Degree of protection	IP67

Product Description

The M12 Connector is an essential component for industrial applications, providing reliable connections for data and power transmission. Designed for efficiency and durability, this assembly connector delivers top performance in demanding environments.

Key Features

Product Name: M12 Connector
Pin: 8
Cable Outlet Diameter: 4-8mm
Clamp matrix material: ABS, PBT/PA, Black
Contact surface material: Brass, Gold-plated
Mating cycles: >100

Technical Parameters

Contact nut material	Brass, Alloy
Contact carrier material	ABS, PA, Black
Ambient temperature	-25~+85℃
Connect	Screw Connection
Coding	A
Contact resistance	≤5mΩ
Standard	IEC 61076-2-101
Rated current	2A
Clamp matrix material	ABS, PBT/PA, Black
Cable outlet	Angle

Applications

The M12 Cable Connector is suitable for industrial automation, telecommunications, and other demanding applications. With its IP67 protection rating and compliance with IEC 61076-2-101 standards, it performs reliably in challenging environments.

Support and Services

Our technical support team provides comprehensive assistance with installation, troubleshooting, and maintenance to ensure optimal performance of your M12 Connector.

Packing and Shipping

Package Includes: M12 Connector x 1
Package Dimensions: 5 x 5 x 2 inches
Shipping Method: Standard Shipping
Estimated Delivery Time: 3-5 business days
