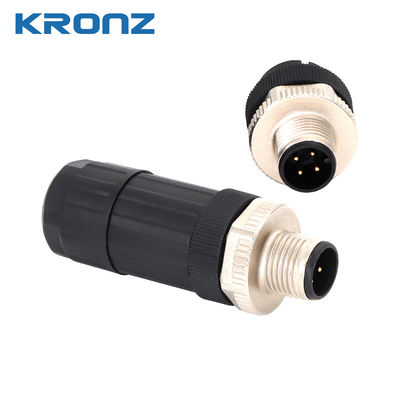

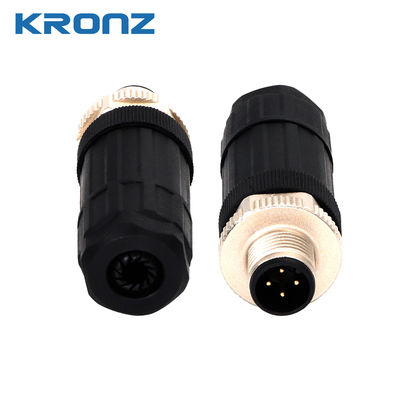

M12 Connector 60V Voltage Straight 5-pin A Code Field-wirable Circular Connectors

Brand Name:	KRONZ
Model Number:	H1205M-9/L
MOQ:	5
Price:	Negotiable
Packaging Details:	Polybag packing
Payment Terms:	T/T, Western Union,

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

Guangdong, China

Certification:

Document:

Product Brochure PDF

Contact Surface Material:

Brass, Gold-plated

Coding:

Seal Material:

NBR

Housing Material:

TPU, Black

Voltage:

60V

Clamp Matrix Material:

ABS, PBT/PA, Black

Connect:

Screw Connection

Standard:

IEC 61076-2-101

Supply Ability:

100000 pieces per month

Highlight:

5-pin M12 Connector

60V M12 Connector

Circular Connectors M12 Connector

Product Description

M12 Connector 60V Voltage Straight 5-pin A Code Field-wirable Circular Connectors

Product Specifications

Attribute	Value
Contact surface material	Brass, Gold-plated
Coding	A
Seal material	NBR
Housing material	TPU, Black
Voltage	60V
Clamp matrix material	ABS, PBT/PA, Black
Connect	Screw Connection
Standard	IEC 61076-2-101

Product Overview

This M12 connector features a clamp matrix constructed from high-quality ABS and PBT/PA materials with a durable black finish. Designed for industrial applications, it provides excellent protection against environmental factors while ensuring reliable performance in demanding conditions.

With a versatile voltage rating (250V/60V/30V), this connector is suitable for various industrial power requirements. The straight cable outlet design allows for secure connections in tight spaces, while the ≥100MΩ insulation resistance enhances safety and reliability.

Key Features

M12 Field-wirable Connector with A coding
Straight cable outlet design for easy installation
Contact nut material: Brass alloy
Contact carrier material: ABS/PA in black
Rated current: 4A
Durable construction with >100 mating cycles
Gold-plated brass contacts for reliable conductivity

Technical Parameters

Contact surface material	Brass, Gold-plated
Housing material	TPU, Black
Cable Outlet Diameter	4-8mm
Connect	Screw Connection
Pin	5
Seal material	NBR
Cable outlet	Straight
Ambient temperature	-25~+85℃
Standard	IEC 61076-2-101

Applications

This M12 connector is ideal for industrial automation systems requiring reliable connections in harsh environments. Its IP67 rating provides protection against dust and water ingress, while the NBR seal material ensures a tight fit.

Common applications include:

Industrial automation equipment
Sensor and actuator connections
Machinery electrical systems
Control panel wiring

Support & Services

Our technical support team provides comprehensive assistance with installation, troubleshooting, and any product-related queries to ensure optimal performance of your M12 connectors.

Packaging & Shipping

Each M12 connector is securely packaged in protective materials to prevent damage during transit. We partner with reliable carriers to ensure prompt delivery of your order.

Ratings & Review

Overall Rating

5.0

Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings

5 stars

100%

4 stars

3 stars

2 stars

1 stars

All Reviews

United States Jun 23.2026

Helpful (68)

This is a high quality, industrial style connector. It's great for robotics or industrial controls where you need a water tight connection you can easily disconnect. I'm using it to connect a remote GPS serial port signal, and it's working great. It's a good value, and it's just as good quality as you will get from the big industrial electronics stores.

Gvrita

United States May 28.2026

Helpful (11)

Good quality connector and cable

Frank

United States Jan 26.2026

Helpful (30)

I used this to connect to a small solar panel and then connected that to my yard robots GPS locator. It needs power and a good line of sight to the sky. I didn't feel like running a cord across the yard.
