M12 Connector Ultrasonic Sensor Analog Current Output 4-20mA Up/Down 30-300mm
  • Name
  • Name

M12 Connector Ultrasonic Sensor Analog Current Output 4-20mA Up/Down 30-300mm

Brand Name: KRONZ
Model Number: U18-D300IT-R00A
MOQ: 10 pieces
Price: Negotiable
Packaging Details: Polybag packing
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Detection Range:
30-300mm
Blind Zone:
0-30mm
Repeatability:
±0.15%F.S.
Response Time:
22ms
Initialization Time:
＜ 500ms
Supply Voltage:
10-30V DC,reverse-polarity Protection
Load Impedance:
I/ ＜ 300 Ohm,U/ ＞ 1k Ohm
No-load Current:
≤30mA
Supply Ability:
100000 pieces per month
Highlight:

M12 Connector Ultrasonic Sensor

,

M12 Connector Ultrasonic Sensor 20mA

,

M12 Connector Ultrasonic Sensor 300mm

Product Description
M12 Connector Ultrasonic Sensor Analog Current Output 4-20mA Up/Down 30-300mm
Key Specifications
Attribute Value
Detection range 30-300mm
Blind zone 0-30mm
Repeatability ±0.15%F.S.
Response time 22ms
Initialization time ＜ 500ms
Supply voltage 10-30V DC, reverse-polarity protection
Load impedance I/ ＜ 300 Ohm, U/ ＞ 1k Ohm
No-load current ≤30mA

Product Overview

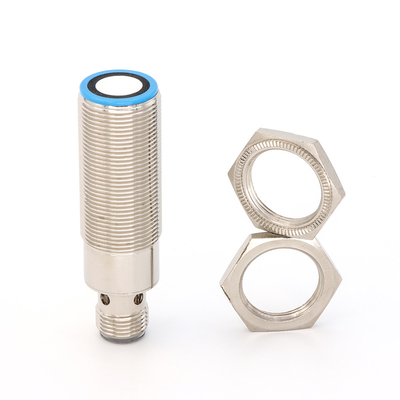

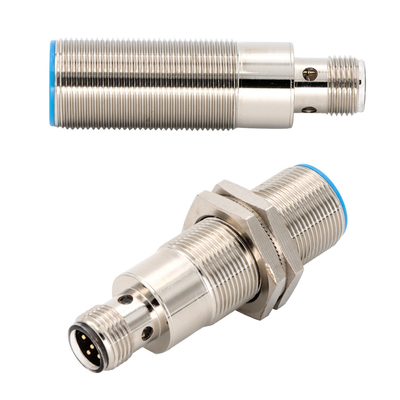

The M12 Connector Ultrasonic Sensor with Analog Current Output (4-20mA) provides precise distance measurement from 30-300mm, featuring robust industrial construction and reliable performance.

Main Features
  • M18 installation threaded sleeve for easy mounting
  • NPN or PNP switching output options
  • Supports digital RS485 with Modbus-RTU standard protocol
  • Analog voltage output (0-10V) or current output (4-20mA)
  • Distance learning function via gray lines
  • Built-in temperature compensation
  • Standard operating voltage DC 10-30V
Technical Specifications
Model U18-D300IT-R00A
Resolution 0.1mm
Accuracy ±1% (with temperature drift compensation)
LED Indicators Red (no object detected), Green (object detected)
Overcurrent protection 200mA
Input type Teach-in and synchronization
Material Copper nickel-plated, plastic fittings, glass epoxy resin
Enclosure rating IP67
Connection type 5pin, M12 connector
Ambient temperature -25℃ to +70℃
Storage temperature -40℃ to +85℃
Weight 35g
Output type 1 analog current output 4-20mA, Up/down
Dimensional Drawing
M12 Connector Ultrasonic Sensor Analog Current Output 4-20mA Up/Down 30-300mm 0
