Modbus TCP RFID Recognition System Gateway Module 18-30VDC 5Pin M12 A coded Male

Brand Name:	KRONZ
Model Number:	KRG60-MT
MOQ:	5 pieces
Price:	Negotiable
Packaging Details:	Paper box packing
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE

Document:

Product Brochure PDF

Description:

RFID Gateway Module

Bus:

Modbus TCP

Connector:

5 Pin M12 A-coded Male

Current Consumption:

＜ 60mA@24V

RFID Port Number:

6

RFID Communication Interface:

RS-485

RFID Port Transmission Distance:

Shielded Twisted Pair, < 50m

Degree Of Protection:

IP67，according To EN 60529

Supply Ability:

10000 pieces per month

Highlight:

RFID Recognition System Gateway Module

,

Modbus TCP RFID Gateway Module

,

30VDC RFID Recognition System Gateway Module

Product Description

Modbus TCP RFID Recognition System Gateway Module 18-30VDC 5Pin M12 A coded Male

Product Overview

This RFID Gateway Module provides reliable Modbus TCP connectivity for industrial RFID recognition systems, featuring robust construction and comprehensive protection features.

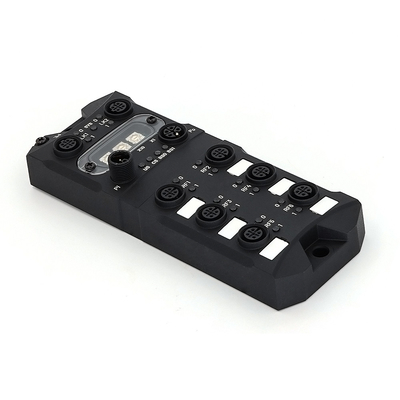

Modbus TCP RFID Recognition System Gateway Module 18-30VDC 5Pin M12 A coded Male 0

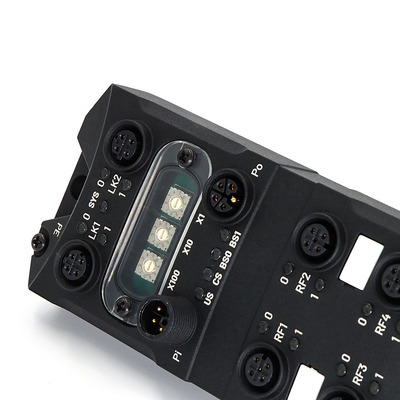

Modbus TCP RFID Recognition System Gateway Module 18-30VDC 5Pin M12 A coded Male 1

Key Specifications

Attribute	Value
Description	RFID Gateway Module
Bus	Modbus TCP
Connector	5 Pin M12 A-coded Male
Current consumption	＜ 60mA@24V
RFID port number	6
RFID communication interface	RS-485
RFID port Transmission distance	Shielded twisted pair, < 50m
Degree of protection	IP67，according to EN 60529

Technical Specifications

Electrical Data

Supply voltage	18-30VDC
Current consumption	＜ 60mA@24V
Power protection	Overcurrent protection, reverse connection protection, surge protection, ESD protection, FFT protection
Power Connector	5Pin-M12-LCODED-Male (PI) 5Pin-M12-LCODED-female(PO)
Bus	Modbus-TCP
Communication	Dual network ports with integrated switching function, compliant with IEE802.3 standard, 10 / 100M adaptive
Bus Transmission distance	Cat 5e and above shielded twisted pair,＜100m
Network Connector	4Pin-M12-DCODED-M12-Female

RFID Interface

RFID port number	6
RFID communication interface	RS-485
RFID port Transmission distance	Shielded twisted pair, < 50m
RFID connector	5Pin-M12-ACODED-Female

Environmental Specifications

Operation temperature	-30℃~+70℃
Storage temperature	-40℃~+85℃
Degree of protection	IP67, according to EN 60529
Shock resistance	7M2, 500 m/s2, according to EN 60721-3-7
Vibration resistance	7M2, 200 m/s2, according to EN 60721-3-7

Mechanical Specifications

Housing Material	Aluminum Alloy
Housing color	Black
Weight	About 400g
Dimensions	167.92x62.92x31.90mm
Type of mounting	4 X M6 screws, the length of the screw should be ≥ 20 mm
Grounding	1 X M3 screws, Grounding ring inner diameter greater than 3 mm, outer diameter should be less than 8 mm.

Standards & Certifications

CE FCC RoHS WEEE

Modbus TCP RFID Recognition System Gateway Module 18-30VDC 5Pin M12 A coded Male 2

Modbus TCP RFID Recognition System Gateway Module 18-30VDC 5Pin M12 A coded Male 3
