RFID Read Write Head With TCP IP Port LED Display 5Pin M12 A Coded Male Connector

10 pieces
MOQ
Negotiable
Price
RFID Read Write Head With TCP IP Port LED Display 5Pin M12 A Coded Male Connector
Features Gallery Product Description Chat Now
Features
Specifications
Series: Q80 Series
Description: RFID HF Read/write Head
Operating Temperature: -30℃~+70℃
Voltage Rating: 18-30V
Interface: M12 8 Pin Male Connector
Operating Frequency: 13.56MHz
Supply Voltage: 9-30VDC
Measuring Range: 0~150mm(Related To The Tags)
Highlight:

RFID Read Write Head

,

RFID Read Write Head 5Pin

,

M12 Connector RFID Read Write Head
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: KRH-Q80G-TCP
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Paper box packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000 pieces per month
Product Description
RFID Read Write Head With TCP IP Port LED Display 5Pin M12 A Coded Male Connector
Product Attributes
Attribute Value
Series Q80 Series
Description RFID HF Read/write Head
Operating Temperature -30℃~+70℃
Voltage Rating 18-30V
Interface M12 8 Pin Male Connector
Operating frequency 13.56MHz
Supply voltage 9-30VDC
Measuring Range 0~150mm(Related to the tags)
Product Description
RFID Read Write Head With TCP IP Port LED Display 5Pin M12 A Coded Male Connector
Advantages
  • High protection level and strong corrosion resistance, can be used in harsh industrial environments
  • High reading and writing speed, speeding up factory production rhythm and improving production efficiency
  • Supports RS232, RS485, TCP/IP, Modbus RTU, Modbus TCP communication, and can be quickly integrated into industrial networks such as PROFINET, EtherCat and Ethernet/IP with our Gateway Module
  • High stability and reliability, 7*24h operation
RFID Read Write Head With TCP IP Port LED Display 5Pin M12 A Coded Male Connector 0

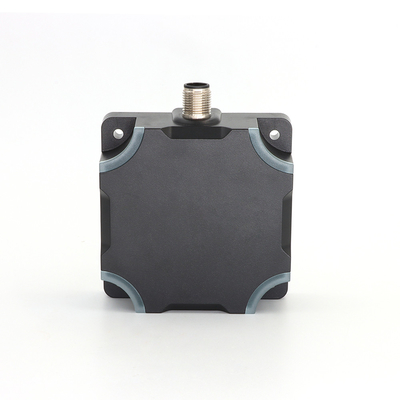

Design ① LED status display
② Power supply and communication interface
Area of application Identification tasks on small assembly lines in harsh industrial environments. Usually used in new energy, automobiles, home appliances and other industries
Electrical Interface

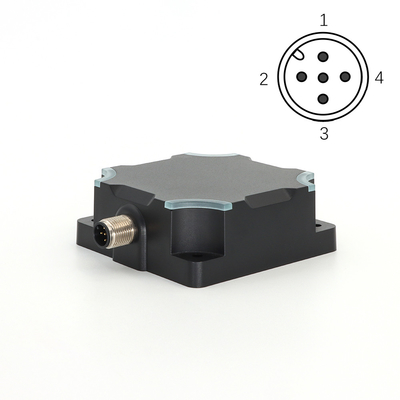

KRH-Q80G with RS-232 interface, using a 5Pin-M12-ACODED-Male connector, the pin assignment is shown below.

Connector Pin Assignment Description
RFID Read Write Head With TCP IP Port LED Display 5Pin M12 A Coded Male Connector 1 1 +24V Power supply positive
2 TX RS-232 TX
3 0V Power supply negative
4 RX RS-232 RX
5 NC Not connected
LED Operating Display

The operational statuses of the reader (KRH-Q80G with TCP/IP interface) are displayed by the LEDs. The LED can adopt the colors blue, red or yellow and the statuses off, on, flashing.

Name Color State Description
SYS Blue Red Off The reader is power off.
Blue LED on The reader is powered on and working properly.
Blue Blue LED flashing The reader is in BOOT mode.
Red Red LED on Reader self-test failed.
Red Red LED flashing Reader software runs abnormally.
LINK Blue Red Off No connection established.
Blue LED on Connection established.
Blue Blue LED flashing Valid instructions were received and executed successfully.
Red Red LED on Hardware failure.
Red Red LED flashing Valid command received but execution failed.
TAG Blue Yellow Off No Tags was detected in the identification area.
Blue LED on Tags was detected in the main identification area (RSSI signal is the strongest).
Blue Blue LED flashing Tags was detected in the secondary identification area (RSSI signal is medium).
Yellow Yellow LED on Tags was detected in the critical identification area (RSSI signal is weak).
Yellow Yellow LED flashing Tag was detected between the critical identification area and the non-identification area (RSSI signal critical).
Reliable Identification Area

The tag should be in the center area of the sensing range as shown below.

RFID Read Write Head With TCP IP Port LED Display 5Pin M12 A Coded Male Connector 2
Metal-free Area

The KRH-Q80G can be flush-mounted in metal. Allow for a possible reduction in the field data. To avoid any influence on the field data, the distance "D" should be kept to ≥30mm.

RFID Read Write Head With TCP IP Port LED Display 5Pin M12 A Coded Male Connector 3
Minimum Distance Between KRH-M30G Readers

KRH-Q80G side by side: To avoid any influence between the readers, the distance "D" should be kept to ≥300mm.

RFID Read Write Head With TCP IP Port LED Display 5Pin M12 A Coded Male Connector 4

KRH-Q80G face-of-face: To avoid any influence between the readers, the distance "D" should be kept to ≥400mm.

RFID Read Write Head With TCP IP Port LED Display 5Pin M12 A Coded Male Connector 5
Technical Data
Order No. KRH-Q80G-TCP
Radio Frequencies
Operating frequency 13.56MHz
Antenna Intergrated
Read/Write range 0-150mm (Related to the tags)
ISO standard ISO 15693
Electrical Data
Supply voltage 9~30VDC
Current consumption <100mA@24V
Communication interface TCP/IP
Transmission speed 10 / 100M adaptive Ethernet
Transmission distance Cat5e and above shielded twisted pair, <100m
Connector 8Pin-M12- ACODEDMale
Permitted ambient conditions
Operation temerature -30℃~+70℃
Storage temperature -40℃~+85℃
Degree of protection IP67 according to EN 60529
Shock resistance 7M2,500 m/s2,according to EN 60721-3-7
Vibration resistance 7M2,200 m/s2,according to EN 60721-3-7
Torsion and bending load Not permitted
Mechanical specifications
Housing Material PC + ABS
Housing color Black
Weight About 185g
Dimensions 80 x 80 x 30 mm
Type of mounting 4 X M4 screws, the length of the screw should be ≥ 20 mm
Thread code M30 x 1.5
LED display 4 x LED, blue 2 x LED, red 2 x LED, yellow
Standards, specifications, approvals
Proof of suitability CE FCC RoHS WEEE
