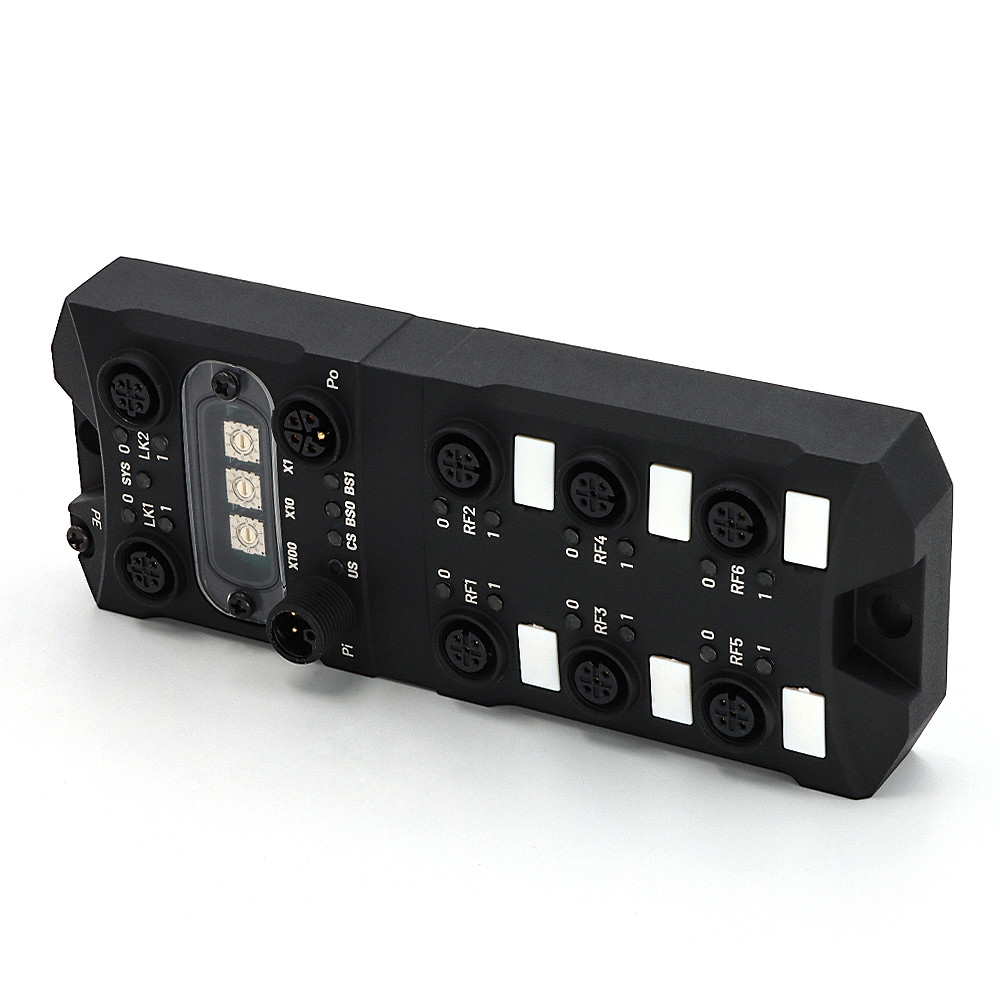

RFID Gateway Module Profinet Industrial Communication 5 Pin M12 A Code Connector
Product Description
1. Advantages:
1>. High protection level and strong corrosion resistance, can be used in harsh industrial environments
2>. Supports mainstream PLCs , provides mature PLC function blocks/routines, and supports industrial communications such as TCP/IP, Modbus TCP , PROFINET, EtherCat and Ethernet/IP
3>. High stability and reliability, 7*24h operation
Characteristics
|
|
Design
|
① Dual network ports, support cascading
|
② Supports 6 RFID ports
|
|
Area of application
|
Applications in harsh industrial environments require multiple RFID and need to be connected to the bus network.
|
2. Electrical interface
LK1/LK2 Ethernet interface using a 4Pin-M12-DCODED-Female connector, the pin assignment is shown below.
Connector | Pin | Assignment | Description |
![]() |
1 | TD+ | Tranceive Data+ |
2 | RD+ | Receive Data+ | |
3 | TD- | Tranceive Data- | |
4 | RD- | Receive Data- |
Pi/Po Power supply interface using a 5Pin-M12-LCODED-Male/Female connector, the pin assignment is shown below.
Connector(Male) | Pin | Assignment | Description |
![]() |
1 | US (+24V) | System power supply positive |
2 | GNDL (0V) | Load power supply negative | |
3 | GNDS (0V) | System power supply negative | |
4 | UL (+24V) | Load power supply positive | |
5 | PE | Protective earth |
Connector(Male) | Pin | Assignment | Description |
![]() |
1 | US (+24V) | System power supply positive |
2 | GNDL (0V) | Load power supply negative | |
3 | GNDS (0V) | System power supply negative | |
4 | UL (+24V) | Load power supply positive | |
5 | PE | Protective earth |
RF1~RF6 RFID interface using a 5Pin-M12-ACODED-Female connector, the pin assignment is shown below.
Connector | Pin | Assignment | Description |
![]() |
1 | US (+24V) | System power supply positive |
2 | A (RS485) | RS485 A | |
3 | GNDS (0V) | System power supply negative | |
4 | B (RS485) | RS485 A | |
5 | NC | Not connected |

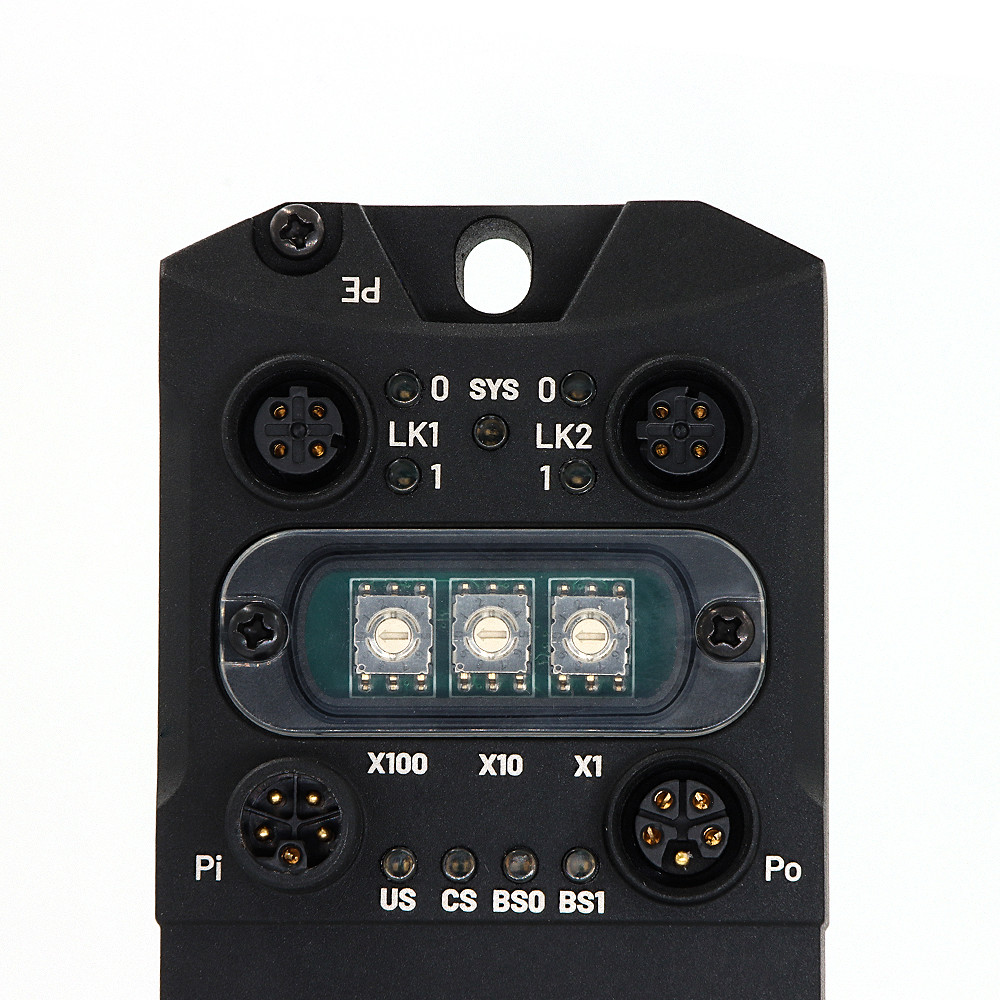

System status
|
|||
NOTICE: SYS is the system status LED, US is the voltage status LED, and CS is the key chip status LED.
|
|||
Name
|
Color
|
State
|
Description
|
SYS
|
Blue
Red
|
Off
|
The GM is power off.
|
Blue LED on
|
The GM has completed initialization and is operating normally.
|
||
Blue LED flashing
|
The GM is running at default settings.
|
||
Red LED on
|
The GM is in BOOT mode.
|
||
Red LED flashing
|
Software failure.
|
||
US
|
Blue
Red
|
Off
|
Undefined (not used).
|
Blue LED on
|
All RFID port voltages are normal.
|
||
Blue LED flashing
|
Undefined (not used).
|
||
Red LED on
|
There is an abnormal voltage on a single RFID port.
|
||
Red LED flashing
|
There are abnormal voltages on multiple RFID ports.
|
||
CS
|
Blue
Red |
Off
|
Undefined (not used).
|
Blue LED on
|
The key chip is working normally.
|
||
Blue LED flashing
|
The key chip temperature is too high.
|
||
Red LED on
|
The key chip communication abnormality.
|
||
Red LED flashing
|
The key chip initialization abnormality.
|
RFID Status
|
|||
NOTICE: RFID has 6 ports ( RF1~RF6 ), and the RFID status is indicated by two LEDs 0/1 . 0 is equivalent to RUN , the running status indicator ; 1 is equivalent to ERR, the error status indicator.
|
|||
Name
|
Color
|
State
|
Description
|
0
(RUN)
|
Blue
|
Off
|
Not enabled.
|
On
|
Communication with the reader is normal.
|
||
Flashing
|
Tags exist in the recognition range.
|
||
1
(ERR)
|
Red
|
Off
|
No abnormality
|
On
|
The voltage is too low.
|
||
Flashing
|
Communication abnormality with the reader.
|
Bus status: Profinet
|
|||
NOTICE: BS0 is equivalent to SF, system failure indicator; BS1 is equivalent to BF, bus failure indicator.
|
|||
Name
|
Color
|
State
|
Description
|
BS0
|
Red
|
Off
|
No error |
Flashing ( 1Hz, 3s )
|
DCP signal service is initiated via the bus.
|
||
On |
Watchdog timeout; channel, generic or extended diagnosis present; system error
|
||
BS1
|
Red
|
Off
|
No error
|
On | No configuration; or low speed physical link; or no physical link | ||
Flashing (2Hz)
|
No data exchange | ||
LK1/2(0)
|
Blue
|
Off
|
The device has no link to the Ethernet.
|
On
|
The device is linked to the Ethernet.
|
||
LK1/2(1)
|
Blue
|
Off
|
The device does not send/receive Ethernet frames. |
Flashing | The device is sending/receiving Ethernet frames. |
Technical Data
Electrical data
|
|
Supply voltage
|
18-30VDC
|
Current consumption
|
< 80mA@24V
|
Power protection
|
Overcurrent protection, reverse connection protection, surge protection, ESD protection, FFT protection
|
Power Connector
|
5Pin-M12-LCODED- Male (PI)
5Pin-M12-LCODED-female(PO)
|
Bus
|
PROFINET |
Communication
|
Dual network ports with integrated switching function, compliant with IEE802.3 standard, 10 / 100M adaptive
|
Bus Transmission distance
|
Cat 5e and above shielded twisted pair,<100m
|
Network Connector
|
4Pin-M12-DCODED-M12-Female
|
RFID port number
|
6
|
RFID communication interface
|
RS-485
|
RFID port Transmission distance
|
Shielded twisted pair, < 50m
|
RFID connector
|
5Pin-M12-ACODED-Female
|
Permitted ambient conditions
|
|
Operation temperature
|
-30℃~+70℃
|
Storage temperature
|
-40℃~+85℃
|
Degree of protection
|
IP67, according to EN 60529
|
Shock resistance
|
7M2, 500 m/s2, according to EN 60721-3-7
|
Vibration resistance
|
7M2, 200 m/s2, according to EN 60721-3-7
|
Mechanical specifications
|
|
Housing Material
|
Aluminum Alloy
|
Housing color
|
Black
|
Weight
|
About 400g
|
Dimensions
|
167.92x62.92x31.90mm
|
Type of mounting
|
4 X M6 screws,
the length of the screw should be ≥ 20 mm
|
Grounding
|
1 X M3 screws,
Grounding ring inner diameter greater than 3 mm, outer diameter should be less than 8 mm.
|
Standards, specifications, approvals
|
|
Proof of suitability
|
CE FCC RoHS WEEE
|
