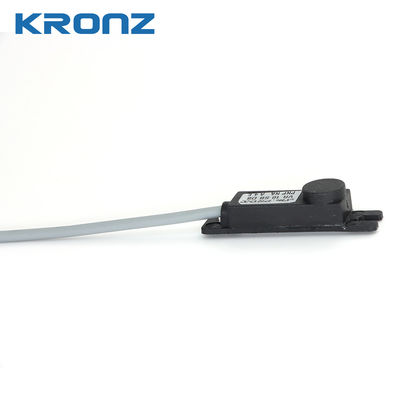

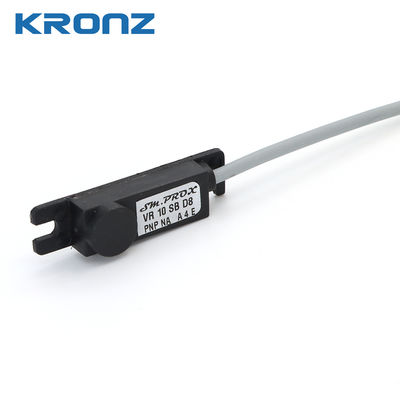

Inductive Sensor PVDF Housing Material Long Distance 8mm Cable Output Bracket Version

Inductive Sensor PVDF Housing Material Long Distance 8mm Cable Output Bracket Version

Brand Name:	KRONZ
Model Number:	VR-10-S-B-D8
MOQ:	1
Price:	Negotiable
Packaging Details:	Polybag packing
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE

Document:

Product Brochure PDF

Connection:

Cable 2m, PVC, 3x0.14mm2

Operating Voltage Ub:

10...35 Vdc

Operating Distance Sn:

8 Mm

Voltage Drop Ud:

Max. ≤ 3.5 V

Frequency Of Operating Cycles:

Max. 500 Hz

Housing Material:

PVDF

Temperature Drift:

<15 %

Electrical Version:

3 Wires DC

Supply Ability:

100000 pieces per month

Highlight:

8mm Cable Output Inductive Sensor

,

Bracket Version Inductive Sensor

,

PVDF Housing Inductive Sensor

Product Description

Inductive Sensor PVDF Housing Material Long Distance 8mm Cable Output Bracket Version

Product Specifications

Attribute	Value
Connection	Cable 2m, PVC, 3x0.14mm²
Operating voltage Ub	10...35 Vdc
Operating distance Sn	8 mm
Voltage drop Ud	Max. ≤ 3.5 V
Frequency of operating cycles	Max. 500 Hz
Housing material	PVDF
Temperature drift	<15 %
Electrical version	3 Wires DC

Key Features

High accuracy rectangular inductive sensor for metal detection
Built-in protective circuit for enhanced durability
IP67 protection rating (dust-tight and waterproof)
PVDF housing for chemical resistance and mechanical protection
Low temperature drift (<15%) for stable performance
Permitted residual ripple of maximum 10%

Inductive Sensor PVDF Housing Material Long Distance 8mm Cable Output Bracket Version 0

Inductive Sensor PVDF Housing Material Long Distance 8mm Cable Output Bracket Version 1

Technical Details

Item No.	VR-10-S-B-D8
Output	PNP normally open
Operating distance Sn	8 mm
Flush mounting	No
Output current max. Ie	max. 250mA
No load current Io	tip. 15mA

Applications

This industrial-grade inductive sensor is designed for demanding automation applications:

Machine Automation: Precise object detection in automated systems
Material Handling: Reliable detection in conveyor systems
Automotive Industry: Component detection on assembly lines
Packaging Machinery: High-speed operation (500Hz)
Harsh Environments: IP67 protection for dust and water resistance

Inductive Sensor PVDF Housing Material Long Distance 8mm Cable Output Bracket Version 2

Inductive Sensor PVDF Housing Material Long Distance 8mm Cable Output Bracket Version 3

Inductive Sensor PVDF Housing Material Long Distance 8mm Cable Output Bracket Version 4

Support & Services

Comprehensive installation guidance
Technical troubleshooting support
Product training resources
Warranty coverage and repair services

Packaging & Shipping

Each sensor is securely packaged in protective bubble wrap and sturdy cardboard boxes to ensure safe delivery.

Orders processed within 1-2 business days with reliable shipping options available.

Inductive Sensor PVDF Housing Material Long Distance 8mm Cable Output Bracket Version 5

Inductive Sensor PVDF Housing Material Long Distance 8mm Cable Output Bracket Version 6
