Home /Products/Inductive Sensors/Inductive Sensors with Durable PVDF Housing Material 10 / 35 Vdc Operating Voltage

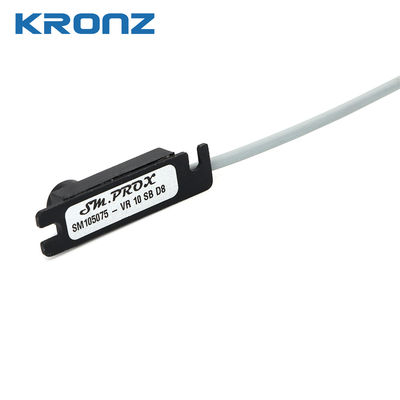

Inductive Sensors with Durable PVDF Housing Material 10 / 35 Vdc Operating Voltage

1
MOQ
Negotiable
Price
Inductive Sensors with Durable PVDF Housing Material 10 / 35 Vdc Operating Voltage
Features Gallery Product Description Request A Quote
Features
Specifications
Output Current Max. Le: Max.250mA
Flush Mounting: No
Connection: Cable 2m, PVC, 3x0.14mm2
Voltage Drop Ud: Max. ≤ 3.5 V
Frequency Of Operating Cycles: Max. 500 Hz
No Load Current Lo: Tip. 15mA
Operating Distance Sn: 8 Mm
Active Surface: PVDF
Highlight:

Durable Inductive Sensors

,

PVDF Housing Material Inductive Sensors

,

5Vdc Inductive Sensors
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: VR-10-S-B-D8
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description
Inductive Sensors with Durable PVDF Housing Material 10 / 35 Vdc Operating Voltage
Product Specifications
Attribute Value
Output current max. le Max.250mA
Flush mounting No
Connection Cable 2m, PVC, 3x0.14mm2
Voltage drop Ud Max. ≤ 3.5 V
Frequency of operating cycles Max. 500 Hz
No load current lo Tip. 15mA
Operating distance Sn 8 Mm
Active surface PVDF
Product Description
The Inductive Sensors product is a reliable and versatile solution for various industrial applications. This rectangular sensor offers exceptional repeat accuracy, with a rate of less than 5%, ensuring precise and consistent detection capabilities. With a maximum frequency of operating cycles reaching up to 500 Hz, this sensor can efficiently handle high-speed processes with ease.
Inductive Sensors with Durable PVDF Housing Material 10 / 35 Vdc Operating Voltage 0
Inductive Sensors with Durable PVDF Housing Material 10 / 35 Vdc Operating Voltage 1
Technical Details
Item No.: VR-10-S-B-D8
Output: PNP normally open
Operating distance Sn: 8 mm
Flush mounting: no
Electrical version: 3 wires DC
Operating voltage Ub: 10...35 Vdc
Output current max. Ie: max. 250mA
Voltage drop Ud: max. < 3.5 V
Permitted residual ripple: max. 10%
No load current Io: tip. 15mA
Frequency of operating cycles: max. 500 Hz
Inductive Sensors with Durable PVDF Housing Material 10 / 35 Vdc Operating Voltage 2
Applications
KRONZ Inductive Sensors are versatile devices suitable for a wide range of industrial applications. These proximity sensors with cables are designed to provide reliable and accurate detection in various industrial settings.
  • Manufacturing Industry: Automated production lines for detecting metal objects
  • Packaging Industry: Packaging machines for material position detection
  • Automotive Industry: Assembly lines for quality control
  • Robotics: Feedback for robotic arms and grippers
  • Material Handling: Conveyor belts and forklifts for efficient material flow
  • Industrial Automation: Detecting metallic objects in various processes
Inductive Sensors with Durable PVDF Housing Material 10 / 35 Vdc Operating Voltage 3
Inductive Sensors with Durable PVDF Housing Material 10 / 35 Vdc Operating Voltage 4
Support and Services
  • Installation assistance
  • Troubleshooting support
  • Product maintenance guidance
  • Warranty information
  • Software updates and downloads
  • Training resources
Packing and Shipping
Product Name: Inductive Sensors
Description: High-quality inductive sensors for industrial applications.

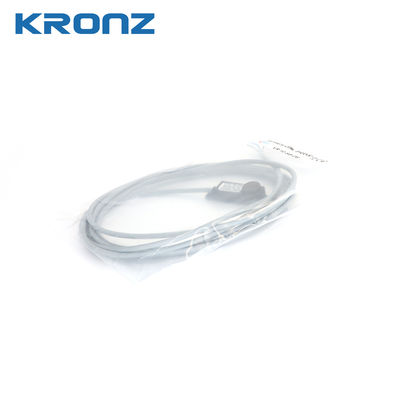

Packaging: Each inductive sensor is carefully packaged in protective foam padding to ensure safe delivery.
Shipping: Fast and reliable shipping options available.
Inductive Sensors with Durable PVDF Housing Material 10 / 35 Vdc Operating Voltage 5
Inductive Sensors with Durable PVDF Housing Material 10 / 35 Vdc Operating Voltage 6
