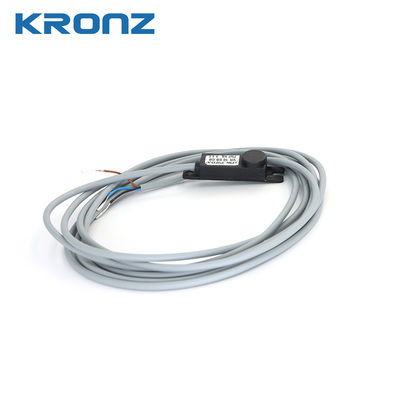

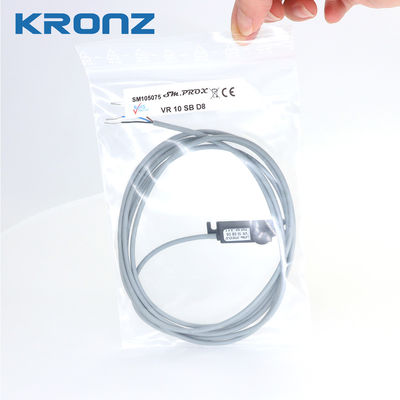

Yellow Led Display Inductive Sensors Temperature Drift 15% Electrical Version 3 Wires DC

1
MOQ
Negotiable
Price
Yellow Led Display Inductive Sensors Temperature Drift 15% Electrical Version 3 Wires DC
Features Gallery Product Description Request A Quote
Features
Specifications
Active Surface: PVDF
Electrical Version: 3 Wires DC
Output Current Max. Le: Max.250mA
Led Display: Yellow
Operating Distance Sn: 8 Mm
Frequency Of Operating Cycles: Max. 500 Hz
Connection: Cable 2m, PVC, 3x0.14mm2
Operating Voltage Ub: 10...35 Vdc
Highlight:

DC Inductive Sensors

,

Yellow Led Display Inductive Sensors

,

3 Wires Inductive Sensors
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: VR-10-O-B-D8
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description
Yellow Led Display Inductive Sensors Temperature Drift 15% Electrical Version 3 Wires DC
Product Specifications
Attribute Value
Active surface PVDF
Electrical version 3 Wires DC
Output current max. le Max.250mA
Led display Yellow
Operating distance Sn 8 Mm
Frequency of operating cycles Max. 500 Hz
Connection Cable 2m, PVC, 3x0.14mm²
Operating voltage Ub 10...35 Vdc
Technical Details
Item No. VR-10-O-B-D8
Output PNP normally closed
Flush mounting no
Voltage drop Ud max. < 3.5 V
Permitted residual ripple max. 10%
No load current Io tip. 15mA
Product Description

This industrial-grade inductive sensor features a yellow LED display and maintains stable performance with temperature drift below 15%. The 3-wire DC version with 2m PVC cable ensures easy installation in various industrial automation applications.

Key features include:

  • PVDF active surface for enhanced durability and sensing accuracy
  • IP67 protection rating for resistance to dust and water ingress
  • Wide operating voltage range (10-35V DC)
  • High frequency operation (up to 500 Hz)
  • Maximum output current of 250mA
Yellow Led Display Inductive Sensors Temperature Drift 15% Electrical Version 3 Wires DC 0 Yellow Led Display Inductive Sensors Temperature Drift 15% Electrical Version 3 Wires DC 1 Yellow Led Display Inductive Sensors Temperature Drift 15% Electrical Version 3 Wires DC 2
Applications

This sensor is ideal for:

  • Industrial automation systems
  • Manufacturing process control
  • Precision proximity detection
  • Machine safety systems
  • Assembly line monitoring
Yellow Led Display Inductive Sensors Temperature Drift 15% Electrical Version 3 Wires DC 3 Yellow Led Display Inductive Sensors Temperature Drift 15% Electrical Version 3 Wires DC 4
Support & Services

Comprehensive technical support including:

  • Product installation guidance
  • Troubleshooting assistance
  • Maintenance recommendations
  • Technical documentation
Packaging & Shipping

Each unit is securely packaged with:

  • Protective plastic casing
  • Bubble wrap cushioning
  • Tracked shipping service
Yellow Led Display Inductive Sensors Temperature Drift 15% Electrical Version 3 Wires DC 5 Yellow Led Display Inductive Sensors Temperature Drift 15% Electrical Version 3 Wires DC 6
