Name: 7/8" Connector Field-wireable Assembly Connectors 4 Pin Female 7/8"-16UN
Brand: Kronz (guangzhou) Electronics Co., Ltd.
SKU: H7804F-9/R
Availability: InStock

7/8" Connector Field-wireable Assembly Connectors 4 Pin Female 7/8"-16UN

50 pieces

MOQ

Negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Description: 7/8" Field-wireable Assembly Connector

Contact Nut Material: Zinc Alloy, Nickle-plated

Contact Carrier Material: PA, Black

Seal Material: FPM/FKM

Ambient Temperature: -25~+85℃

Connector Type: Screw Locking

Housing Material: PBT/PA, Black

Degree Of Protection: IP67

Highlight:

4 Pin Field Wireable Connectors 7/8

Female Field Wireable Connectors

Field Wireable Connectors 7/8"-16UN

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: KRONZ

Certification: CE

Model Number: H7804F-9/R

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: Polybag packing

Delivery Time: 5-8 working days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 100000 pieces per month

Gallery

7/8" Connector Field-wireable Assembly Connectors 4 Pin Female 7/8"-16UN

Product Description

7/8" Connector Field-wireable Assembly Connectors 4 Pin Female 7/8"-16UN

Product Description

The 7/8" field-wireable assembly connector is a specific connector type that has 4 or 5 wire receptacles, and the connector is 7/8" in diameter. ‌This kind of connector is usually used in situations where high electrical performance and reliable connection are required, ‌such as industrial automation, ‌machinery manufacturing and other fields.

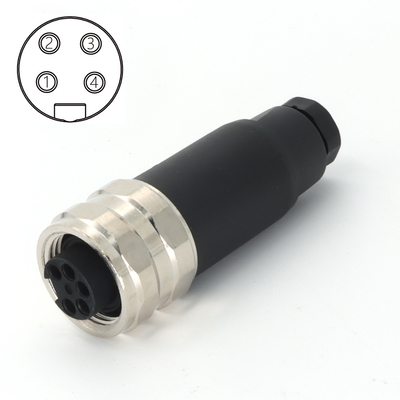

7/8" Connector Field-wireable Assembly Connectors 4 Pin Female 7/8"-16UN 0

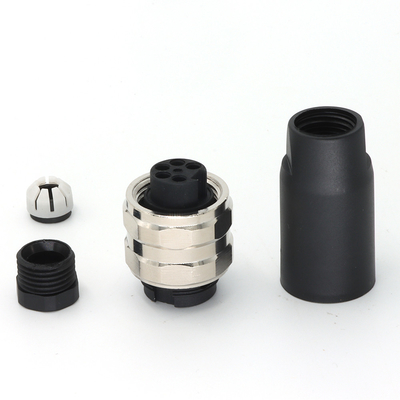

7/8" Connector Field-wireable Assembly Connectors 4 Pin Female 7/8"-16UN 1

Technical Data

Thread type	7/8”-16UN
Contact nut material	Zinc alloy, nickle-plated
Contact surface material	Brass, gold-plated
Contact carrier material	PA, black
Housing material	PBT/PA, black
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Pollution degree	3
Ambient temperature	-25~+85℃
Mating cycles	>100
Degree of protection	IP67

Pin assignment	Connection method	Coding	Rated current	Voltage	Cable outlet	External cable diameter	Model No.
	Screw connection	A	8A	600V	Straight	6-8mm	H7804F-9/R
